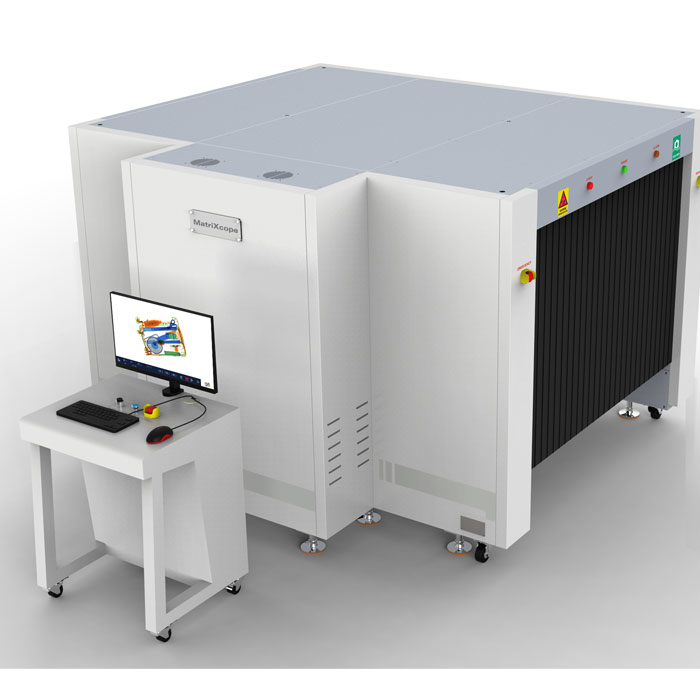

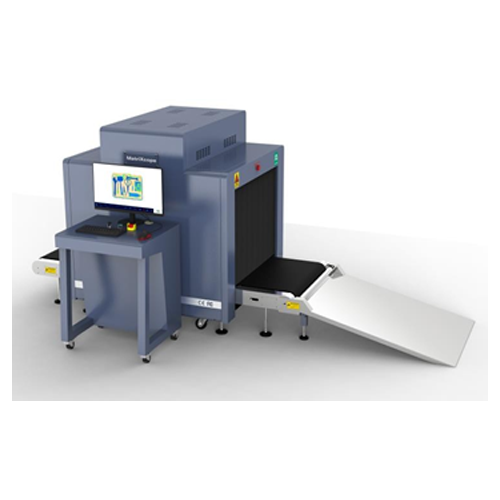

MatriXcope MTC-XR86은 미국의 보안 솔루션 브랜드 MatriXcope의 고성능 수하물 X-ray 검색기입니다. Tunnel size 800(L)*650(W) mm, conveyor speed 0.4 m/s, conveyor max load 200 kgs, penetration 39mm steel, anode voltage 140 KV, unit weight 350 kgs.
주요 기능
- Enhanced Imaging Technology: 고해상도 X-ray 이미지를 제공하여 숨겨진 물체를 정확하게 식별할 수 있습니다.
- Multi-Energy X-ray: 유기물과 무기물을 효과적으로 구분하고 폭발물, 무기, 마약 및 기타 금지품을 식별합니다.
- Compact and Efficient Design: 공간이 제한된 곳에 설치하기 적합한 소형 설계입니다.
- Operator-Friendly Interface: 친숙한 인터페이스로 교육 시간을 단축하고 운영 생산성을 높입니다.
- Durable and Reliable: 높은 처리량 환경을 위한 견고한 구조로 최소한의 유지보수가 필요합니다.
- Safety and Compliance: 방사선 안전 및 이미지 품질에 관한 국제 표준을 충족합니다.
- Optional Enhancements: 자동 위협 탐지 소프트웨어 옵션, 이미지 향상 옵션 및 원격 모니터링 옵션.
적합한 사용처
- 공항
- 교통 센터
- 정부 시설
- 기업 빌딩
견적을 받으려면 0796 700 777로 연락하십시오.
| Tunnel size (mm) | 800(L)*650(W) |
|---|---|
| Conveyor Speed (m/s) | 0.4 |
| Conveyor height (mm) | 305 |
| Conveyor Max Load (kgs) | 200 |
| X ray dose/inspection | ≤3.0 μGy |
| X ray leakage | <1μGy/h at any point 5 centimeters outside the external surface |
| Penetration | 39mm steel |
| Wire Resolution | AWG36 |
| Spatial resolution | Horizontal: dia 1.6mm, Vertical: dia 1.6mm |
| Power Consumption | max. 1KW |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Sensor | L-Shaped Photodiode Array, 12bit deep |
| Images process | 24bit real time processing, 4colors analysis, Images displayed marked date and ID No., Count the number of bags |
| Image display | High resolution of 1920*1080 pixel; Image Grey Level: 65536 |
| Image Enhancement | 1-32 times enlargement continuity, Color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc. |
| Explosives & Narcotics Detection | Suspicious organics highlight (atomic number Zeff=7,8,9) |
| Suspecious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection (TIP) | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Recall | 30 images recallable |
| Image Archive | Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG format |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, etc. |
| Options | Inteligent roller, network, etc. |
| Anode Voltage | 140 KV |
| Ray direction | Downward |
| Cooling / Duty Cycle | Sealed oil cooling /100% |
| Operation temperature/Humidity | 5℃-40℃ / 0%-90%(non-condensing) |
| Storage Temperature/Humidity | -20℃ to 60℃ / 10%-90%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Options: 110-120V, 230-240V, 60Hz) |
| Stabilizer and UPS | Optional |
| Monitor | One 21.5-inch LCD monitor, 1920*1080, one console desk |
| RAM | 1GB |
| Hard Disk | 250G |
| Keyboard | Special designed |
| System | Embedded Linux operating system, multi core ARM, stable and reliable |
| Electric roller | Three-phase |
| Compliance | ISO19001; ISO14001; ISO45001; CE; RoHS; FDA; FCC |
| Unit weight (kgs) | 350 |
| Unit size (mm) | 2935(L)*1050(W)*1300(H) |
| Gross weight (kgs) | 500 |
| Packing size | #1: 185*120*152cm #2: 75*65*99cm |
