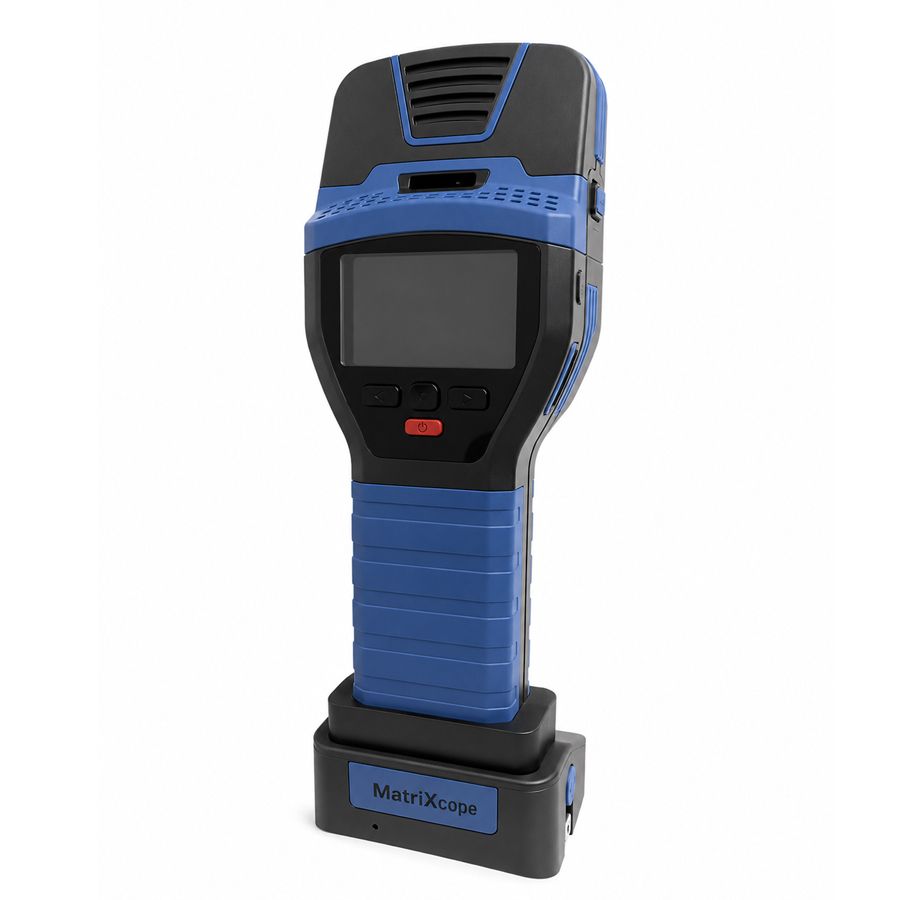

MatriXcope MTC-EX6700XPRO 手持式爆炸物痕量检测仪是一款便携式安检设备，采用 Amplified Fluorescent Polymer Quenching Sensor 技术，可检测爆炸物颗粒与蒸气，TNT 检测限 LOD ≤0.05ng，分析时间 ≤5s，启动时间 ≤10s，可识别 30 余种爆炸物，含电池重量 ≤1.05kg，防护等级 IP53。
突出特点
- 高灵敏度检测爆炸物痕量
- 可检测颗粒（particle）和蒸气（vapor）两种样本
- TNT 检测限低至 0.05 ng
- 可识别 30 余种军用、商用及自制爆炸物
- Amplified Fluorescent Polymer Quenching Sensor 技术
- ≤5 秒快速分析
- ≤10 秒冷启动
- 自动校准以保持稳定性能
- 低误报率（≤1%）
- 无需放射源
- 图像、声音和振动报警
- 轻便、符合人体工学的手持设计
- 坚固的 ABS polycarbonate 外壳
- IP53 防护等级，适用于现场环境
- 存储 100,000 条以上检查记录
适用场景
- 机场安检
- 海关与边境管控
- 军队与国防
- 警察与执法
- 政府设施
- 关键基础设施防护
- 港口与物流中心
- 铁路与地铁安保
- 公共活动安保
- VIP 保护任务
- 邮件与包裹检查
- 工业安检
联系 0796 700 777 获取报价。
| Technology | Amplified Fluorescent Polymer Quenching Sensor |
|---|---|
| Analysis time | ≤5s |
| Start-up time | ≤10s |
| Sampling method | Particle and Vapor |
| Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
| Vapor | 10⁻¹⁴ g/cm³ |
| Operating TEMP | – 20 ℃ ~ 55 ℃ |
| False alarm rate | ≤ 1% |
| Power Consumption | 7.5W |
| Rated voltage | 7.4V |
| Rated Capacity | 65.5Wh |
| Rated Energy | 8850mAh |
| Display Screen | 3″TFT Color display Screen |
| Com Port | USB2.0 |
| Data Storage | ≥100000pieces of record |
| Battery | Two Li-ion Rechargeable Battery |
| Battery Working Time | Single battery time up to 8 hours |
| Battery Charging Time | ≦ 3.5hours |
| Alarming method | Visual / Audible / Vibration |
| Dimensions | 300mm × 106mm × 71mm |
| Weight | ≦ 1.05kg including battery |
| Protection Level | IP53 |
| Substances detected | Military, Commercial, and Homemade Explosives including: TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
