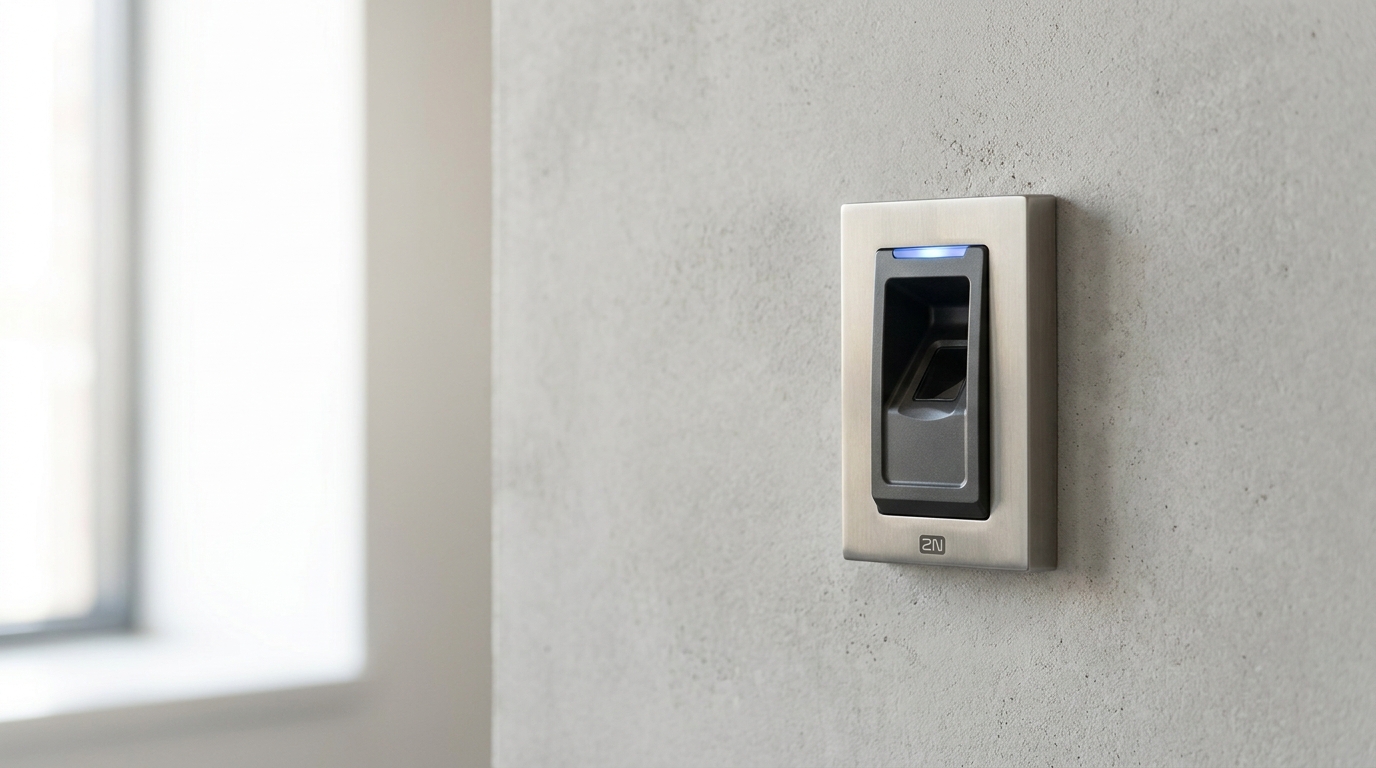

2N Access Unit 2.0 is an access control device with an in-built controller, supporting up to 3 access technologies in 1 reader, PoE and/or 12 V/1 A DC power, zinc cast housing with nickel or black finish, IP54 and IK08 protection rating, and 0.8 kg weight.
Key Features
- In-built controller
- Ideal for residential projects
- Premium finish in two colours
- Up to 3 access technologies in 1 reader
- Power: PoE and/or 12 V/1 A DC; PoE per 802.3af standard (Class 0 – 12.95 W)
- Sturdy zinc cast housing with a finished surface (nickel and black)
- Optical fingerprint sensor protected by impact-resistant glass, anti-spoofing fingerprint detection algorithm, water and dust resistance, acoustic signals and multicolour LED, sensor area 15.24 x 20.32 mm, FBI standard certified
- Bluetooth 5.0 LE: short range typically up to 3 m, long range typically up to 10 m, 128-bit encryption, RX sensitivity 93 dB, touch/tap mode in the app
- Mobile app: Android 12, iOS 18.0 (iPhone, iPad), visionOS 2.0 (Apple Vision), watchOS 11.2 (Apple Watch) or later
- Compatible with all expansion modules of the 2N IP Verso intercom: keypad, fingerprint, I/O module, Wiegand, etc.
Suitable Applications
- Residential projects
- Access control
- Apartment buildings
- Offices
Contact 0796 700 777 for a quote.
| Loại thiết bị | Đầu đọc kiểm soát ra vào tích hợp controller (in-built controller) |
|---|---|
| Công nghệ nhận dạng | Tối đa 3 công nghệ trong 1 đầu đọc |
| Màu hoàn thiện | Nickel và black |
| Nguồn cấp | PoE và/hoặc 12 V/1 A DC; PoE: 802.3af (Class 0 – 12.95 W) |
| Bluetooth | Bluetooth 5.0 LE; phạm vi ngắn thường tới 3 m, phạm vi dài thường tới 10 m; mã hoá 128; độ nhạy RX 93 dB; chế độ touch/tap trong app |
| Cảm biến vân tay | Cảm biến quang học được bảo vệ bằng kính chống chịu lực; thuật toán phát hiện vân tay giả; chống nước và bụi; tín hiệu âm thanh và LED nhiều màu; vùng cảm biến 15.24 x 20.32 mm; chứng nhận theo tiêu chuẩn FBI |
| Khung vỏ | Khung zinc cast chắc chắn với bề mặt hoàn thiện (nickel và black) |
| Nhiệt độ hoạt động | -40 đến 60°C |
| Nhiệt độ lưu trữ | -40 đến 60°C |
| Độ ẩm tương đối khi hoạt động | 10 – 95% (không ngưng tụ) |
| Kích thước khung gắn nổi (surface) | 1 module: 107 (W) x 130 (H) x 28 (D) mm |
| Kích thước khung âm tường (flush) | 1 module: 130 (W) x 153 (H) x 5 (D) mm |
| Hộp âm tường (lỗ tối thiểu) | 1 module: 108 (W) x 131 (H) x 45 (D) mm |
| Trọng lượng | 0.8 kg |
| Cấp bảo vệ vỏ | IP54 và IK08 |
| Ứng dụng di động hỗ trợ | Android 12, iOS 18.0 (iPhone, iPad), visionOS 2.0 (Apple Vision), watchOS 11.2 (Apple Watch) trở lên |
| Module mở rộng | Tương thích toàn bộ module của intercom 2N IP Verso: keypad, fingerprint, I/O module, Wiegand, v.v. |
