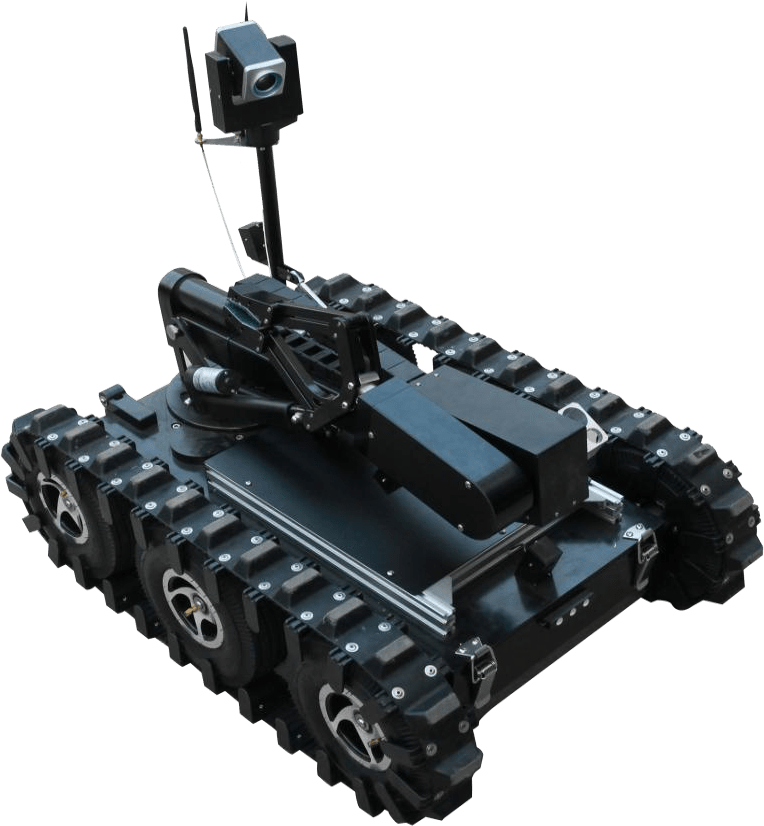

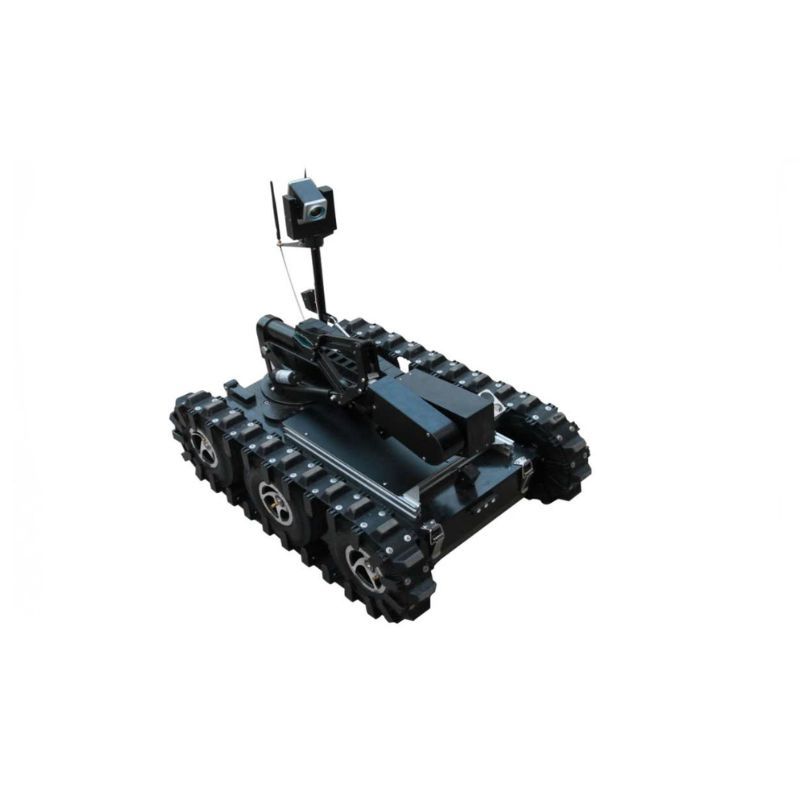

EOD Robot MatriXcope MTC-RB8500XPRO is an unmanned ground vehicle (UGV) purpose-built for Explosive Ordnance Disposal (EOD), maximum speed 1.0m/s, 150KG payload, 280mm obstacle clearance, 45° grade climbing, 6 DOF manipulator arm with 1650mm reach, 150-800m wireless control.
Key Features
- Aviation-grade aluminum alloy material, precision machined
- Dimensions L*W*H: 920 * 625 * 515 mm; weight 92.8kg (excluding accessories, packaging, and control box)
- Maximum speed 1.0m/s; working time ≥3 hours when fully charged (Combined Cycle Conditions)
- Over-obstacle capacity of 280mm; climbing stairs with 160mm steps and 45° slopes with traction-free assist
- Climbing 45° grades and stopping stably on slopes; 360° turning on concrete or asphalt
- Lifts a 30KG gripped object without dropping (measured); 150KG payload moves normally (measured); drag force 500N
- 6 DOF manipulator arm: gripper open/close, gripper rotation, small arm rotation, telescopic arm extension/retraction, big arm rotation, big arm lift/lower
- Manipulator arm maximum reach 1650mm; arm extension/retraction 500mm; gripper maximum expansion 250mm
- Rotation angle: gripper 360º forward/reverse; small arm 150º forward and 110º reverse; big arm pitch 90º; kidney basin 180º forward and 45º reverse
- 4 low-light cameras: forward, backward, cradle head various focal, manipulator gripper
- 2 groups of LED floodlights (one group front and one group rear)
- Cradle head 2 DOF independent, adjustable rotation speed; 360º continuous rotation at a maximum of 130°/second; pitching -45°~120° at a maximum of 50°/second
- Mobile control box, waterproof, dustproof, high durability; dimensions ≤L460*W370*H260 mm; weight ≤10kg
- 12-inch HB LCD wide-view screen, clear outdoor images; displays 4 video signals simultaneously or zooms in on one signal separately
- Real-time battery status display; 24V rechargeable lithium battery, 3-hour working time when fully charged
- Wireless control 150 – 800 m (depending on environmental conditions); wired 100m
Recommended Applications
- Public Safety & Counter-Terrorism
- Hazardous Environments (toxic biological areas, high radioactive nuclear zones)
- Disaster Response
- Tactical Reconnaissance
Contact 0796 700 777 for a quote.
| Maximum Speed | 1.0m/s |
|---|---|
| Battery | Rechargeable 24V lithium battery, working time 3 hours when fully charged. |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Lift Capability | It can move with clamping weights of 30KG and will not drop (actual measurement). |
| Dimensions | LWH: 920 * 625 * 515 mm |
| Over-obstacle Capacity | It can cross the obstacle of 280mm height. |
| Working Time | ≥3 hours when fully charged (Combined Cycle Conditions) |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of 160mm step height and 45° angle slope. |
| Weight | 92.8kg (without accessories, package and control box) |
| Limited Passage Width | ≤700mm |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360°. |
| Max. Mechanical Arms Spread | 1650mm |
| Drag Capability | 500N |
| Loading Capacity | When loading 150KG, it can move normally (actual measurement). |
| Grade Ability | It can climb the slope of 45° and stop steadily on the slope. |
| Arm Extension when stretch out and draw back | 500mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Control Box | Via the buttons and handle of control box, the operators can control video switch, zoom, moving, cradle rotating, floodlight, telescopic arm, gripper opening and closing, small arm rotating, big arm lifting, kidney basin rotating, wrist rotating, etc. |
| 6 Mechanical Arm DOFs | Manipulator gripper opening and closing; Manipulator gripper rotation; Small arm rotation; Telescopic arm extend and retract; Big arm rotation; Big arm rise and fall |
| Rotation Angle | Manipulator gripper can rotate clockwise and anticlockwise 360º; Small arm can rotate clockwise 150º and anticlockwise 110º; Big arm can pitch angle of 90º; Kidney basin can rotate clockwise 180º and anticlockwise 45º |
| Control Distance | Wireless control: 150 – 800 m (depending on environmental conditions); Wired control: 100m |
| Number of Cameras | 4 |
| Forward Camera | Low-light camera |
| Backward Camera | Low-light camera |
| Cradle Head Various focal Camera | Low-light camera |
| Manipulator Gripper Camera | Low-light camera |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| DOFs of Cradle Head | 2 independent DOFs, adjustable rotation speed. Cradle rotation: 360º continuously, maximum rotation speed of 130° per second. Cradle pitching: -45°~ 120°, maximum pitching speed of 50° per second. |
| Control Terminal Box | Portable, waterproof, dustproof, high strength |
| Control Terminal Size | ≤ L 460 * W 370 *H 260 mm |
| Control Terminal Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation | High-quality rocker handle, human software interface design, easy observation and convenient operation |
| Display Image | It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals |
| Information Display | Real-time battery status |
