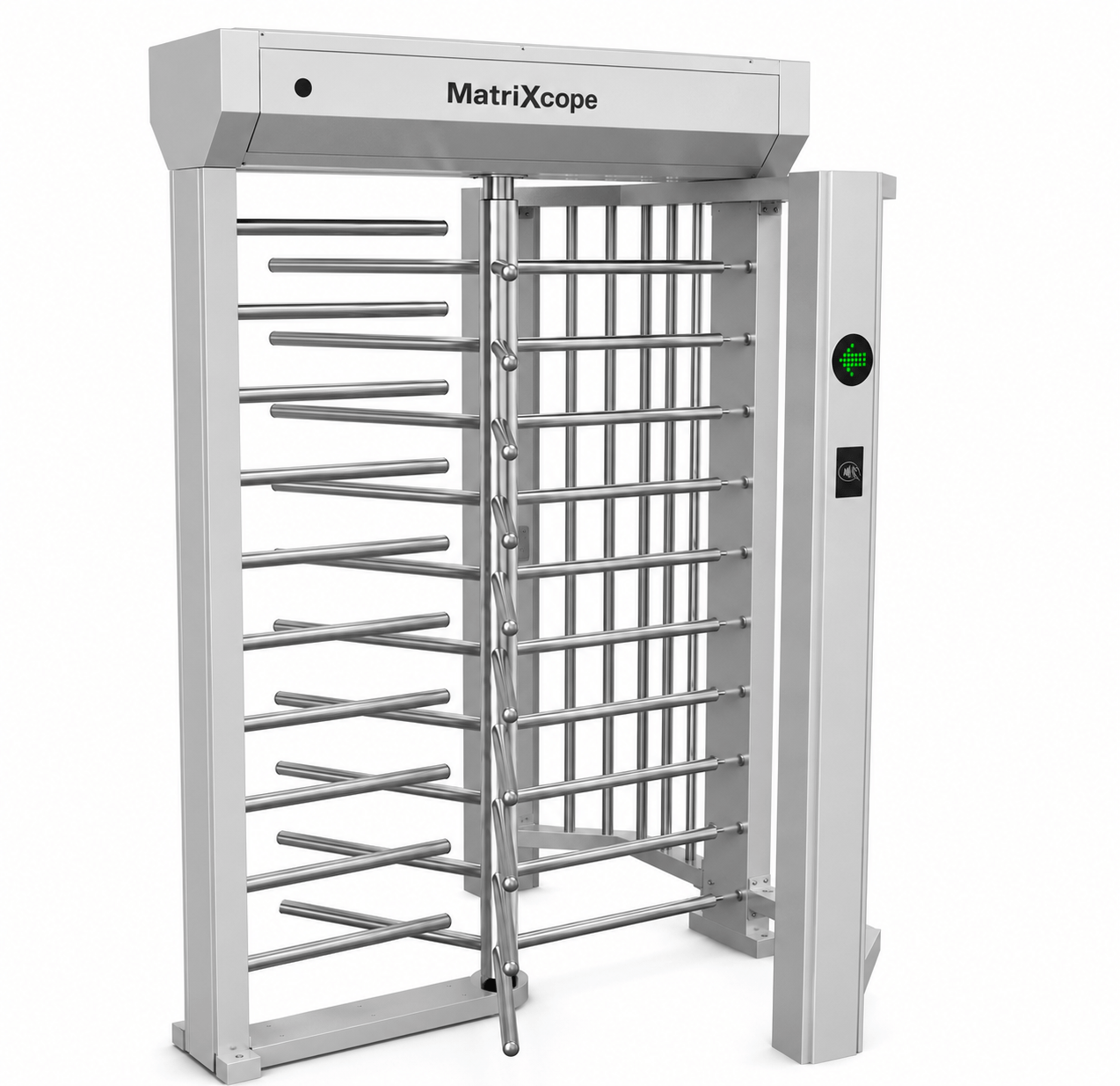

Full Height Turnstile MatriXcope MTC-F5400XPRO

Full Height Turnstile MatriXcope MTC-F5400XPRO is a full-height turnstile used for pedestrian access control in indoor and outdoor environments. The device uses SUS304 material (body δ=1.5mm / fence φ=1.0mm / transmission shaft φ=2.8mm), IP54 protection rating, operating temperature range -20°C~+70°C, humidity ≤90% non-condensing, pass rate 40-60 people/minute, pass width 650mm, dimensions 1630*1550*2300mm, Dry contact & RS485 communication, 24V 150W power supply.

Key Features

• Sturdy and reliable full-height turnstile design
• Smooth operation, low noise
• Long service life with durable mechanical components

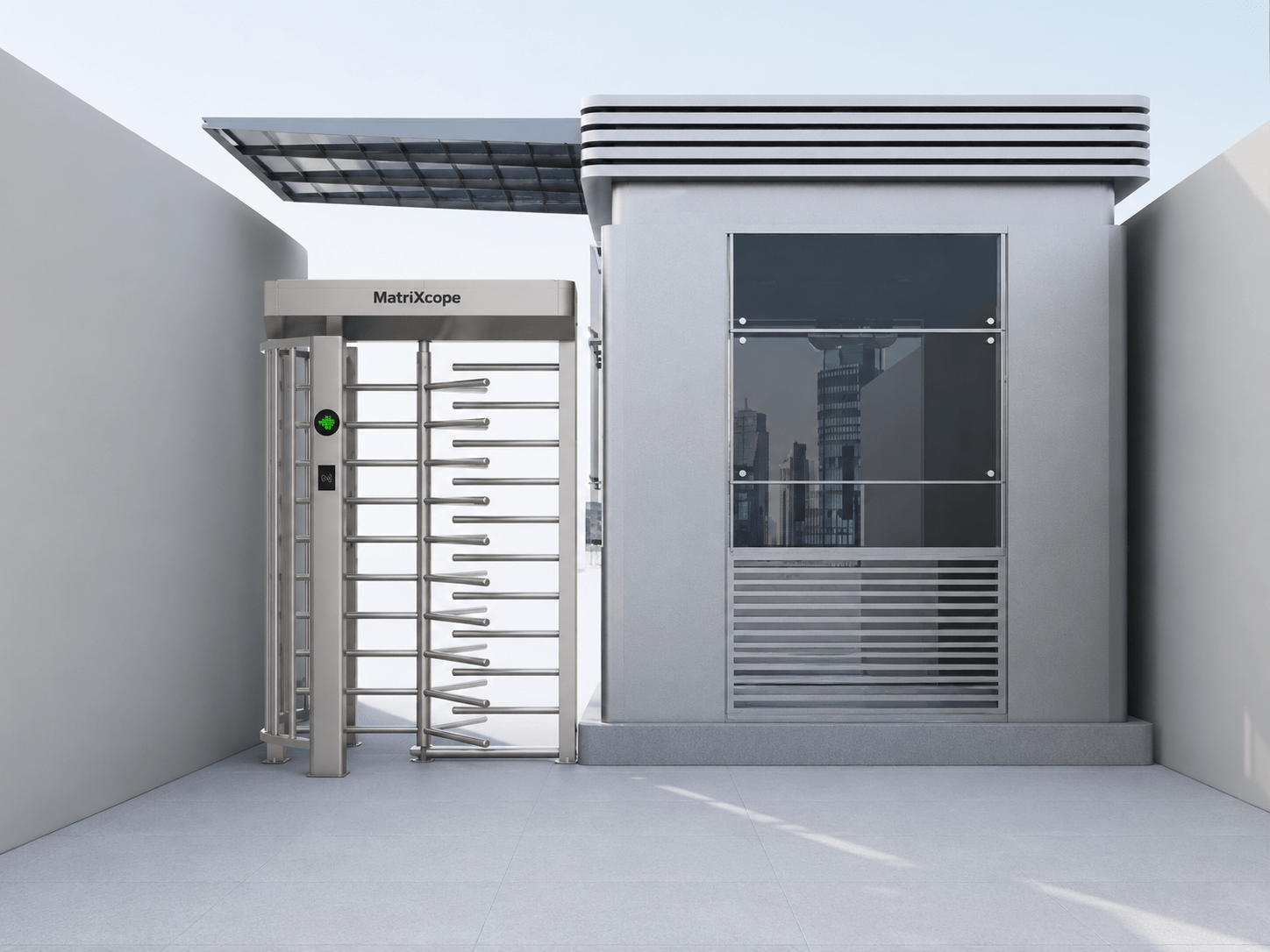

• Suitable for indoor and outdoor installation
• Automatic reset and re-locking function
• Supports "with memory" and "without memory" access modes
• Compatible with IC cards, ID cards, QR code scanners, and facial recognition systems
• Supports one-way and two-way access control
• Configurable normally open or normally closed mode
• Dynamic direction indicator for clear passage guidance
• Dry contact and RS485 communication
• Anti-burn solenoid drive unit for stable and reliable operation

Access Control Integration

• IC card readers
• ID card readers
• QR code and barcode scanners
• Facial recognition terminals
• Biometric access control systems
• Visitor management systems
• Time attendance systems

Operating Functions

• Automatic reset: after access is granted, the turnstile automatically returns to the locked state if the user does not pass through within the preset time
• Memory and non-memory modes: the system can operate with memory or non-memory function depending on the required access control procedure
• Multiple passage modes: two-way control, one-way control, controlled entry - free exit, free entry - controlled exit, normally open mode, normally closed mode

SUS304 Construction

The MTC-F5400XPRO is manufactured from SUS304 stainless steel, providing high durability and resistance in harsh operating environments. The full-height physical barrier structure provides a higher level of access control than conventional waist-height turnstiles, suitable for facilities that need to prevent climbing or unauthorized bypass.

Typical Applications

• Factories and industrial parks
• Warehouses and logistics centers
• Construction sites
• Office buildings
• Data centers
• Power plants and utility facilities
• Stadiums and sports venues
• Transportation facilities
• Residential and commercial complexes
• High-security restricted areas

Contact 0796 700 777 for a quote.
