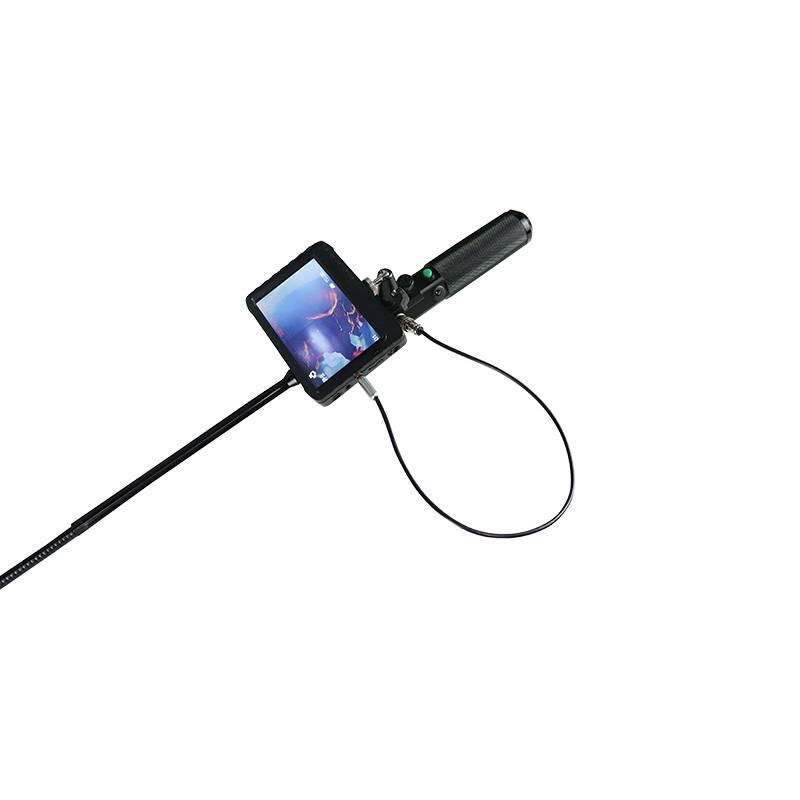

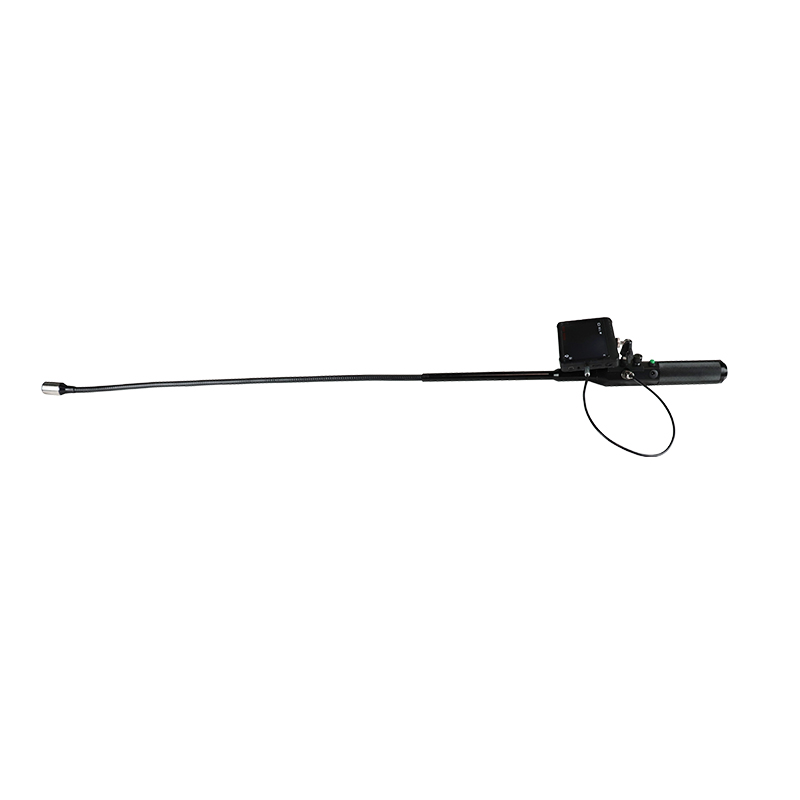

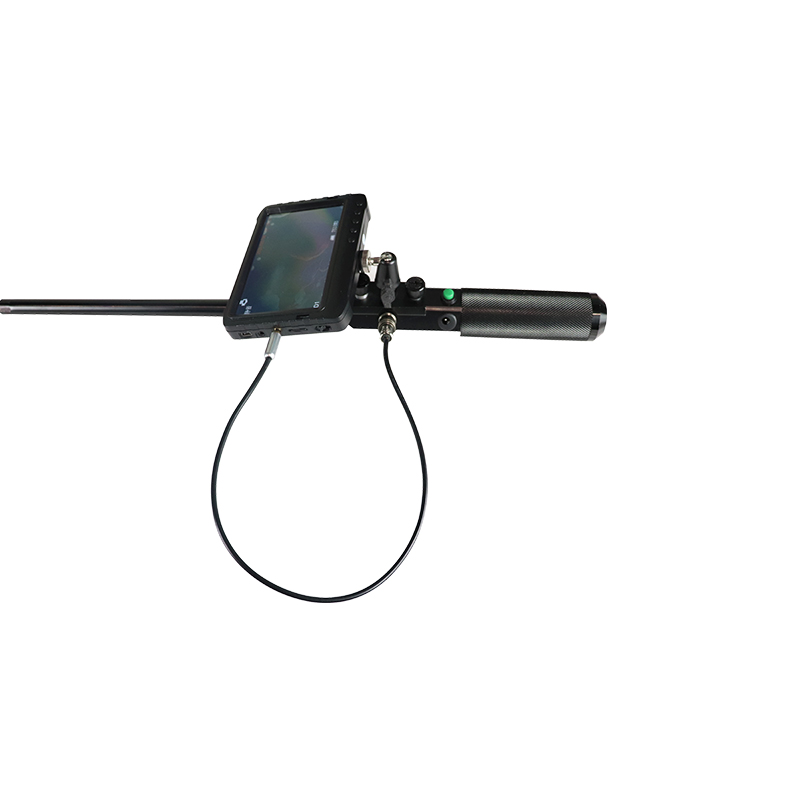

The MCD-V7D under vehicle inspection mirror is an HD camera-based under vehicle inspection device with DVR recording, IP68 waterproof camera, 940mm flexible tube, 7-inch 16:9 LCD screen, 8-hour Lithium battery, and 2.7kg weight.

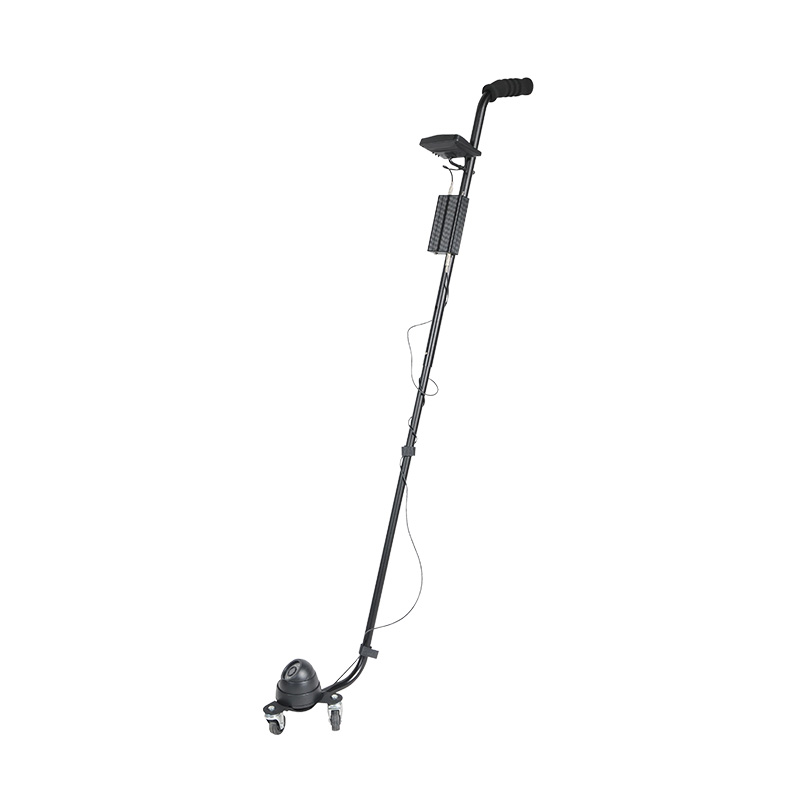

Economical, easy to carry, simple and clear, with three wheels for rotation. And very easy to push. Especially used to inspect vehicle undersides, under tables, under chairs, etc. This is a very practical security tool.
Key Features
- Sensor: 1/4 inch, resolution PAL@720X576/NTSC: 720X480
- Flexible tube: 940mm; maximum length: 1.16m
- Camera housing: 304 stainless steel; camera lens: Sapphire blue
- Lens viewing angle: 120 degrees; camera adjustment angle: arbitrary
- Camera light source: 12 LED lights; waterproof rating: IP68
- Operating voltage: DC 12V, operating current: 100mA
- Operating temperature: -10℃-50℃; weight: 2.7kg; packaging size: 52*23.5*9cm
- 7-inch LCD screen, 16:9, resolution 480*320*RGB
- Power: 5V DC (built-in Li-ion battery); noise level: 85Db
- USB port: 2.0 (high speed); output power: 20Hz---20KHz
- High-capacity Lithium battery for 8 hours of operation, avoiding frequent battery replacement

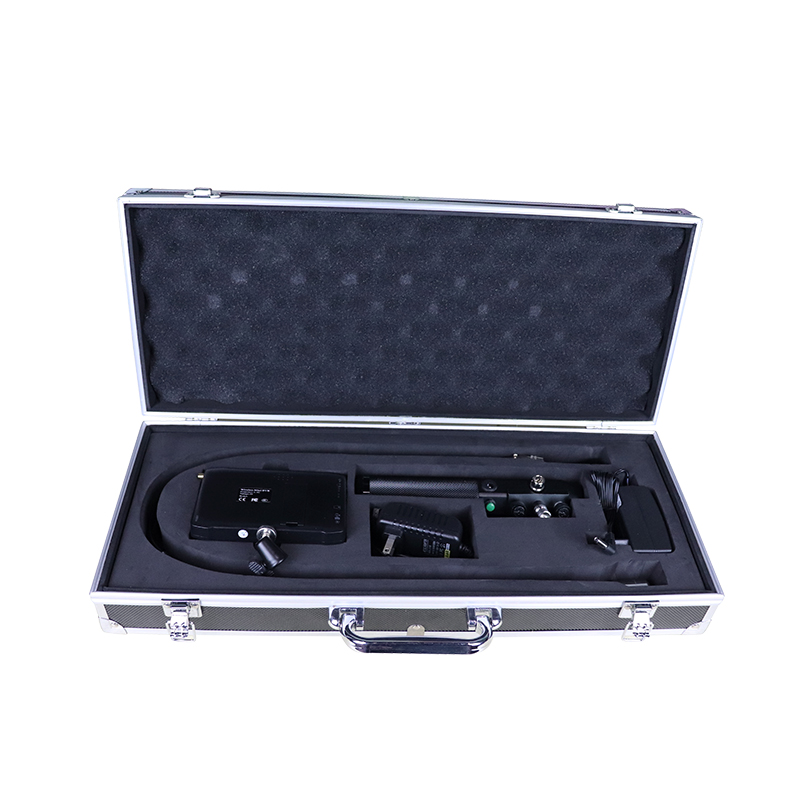

- Standard aluminum alloy carrying case resistant to drops, impacts, or compression
Suitable Applications
- Under vehicle inspection
- Container inspection
- Under table and under chair inspection
- Search for survivors after earthquakes
- Other special inspection situations
Contact 0796 700 777 for a quote.
| Loại | Under Vehicle Inspection System |
|---|---|
| Thương hiệu | MCD |
| SKU | MCD-V7D |
| Kích thước camera | 23mmx50mm |
| Ống mềm | 940mm |
| Vỏ camera | Stainless steel 304 |
| Thấu kính camera | Sapphire blue |
| Kích thước cảm biến | 1/4 inch |
| Độ phân giải cảm biến | PAL@720X576/NTSC: 720X480 |
| Góc nhìn ống kính | 120 degrees |
| Góc điều chỉnh camera | Arbitrary angle |
| Nguồn sáng camera | 12 LEDs |
| Tiêu chuẩn chống nước | IP68 |
| Điện áp làm việc | DC 12V, working current: 100mA |
| Chiều dài tối đa | 1.16m |
| Nhiệt độ làm việc | -10℃-50℃ |
| Trọng lượng | 2.7kg |
| Kích thước đóng gói | 52*23.5*9cm |
| Kích thước màn hình LCD | 7-inch, 16:9 |
| Độ phân giải màn hình | 480*320*RGB |
| Nguồn màn hình | 5V DC(Built-in Li-ion battery) |
| Độ ồn | 85Db |
| Cổng USB | 2.0(High speed) |
| Công suất đầu ra | 20Hz---20KHz |
