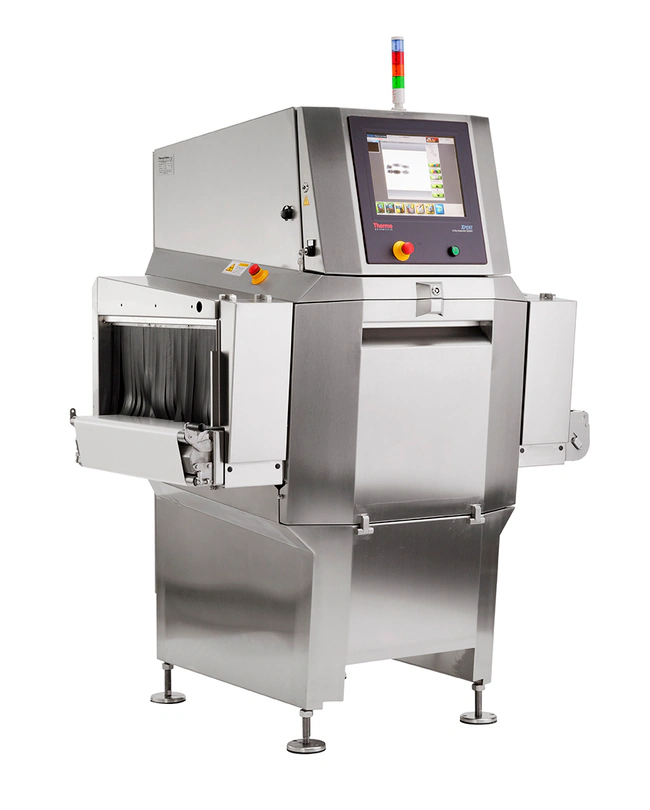

Thermo Scientific Xpert C400 is a top down conveyor X-ray inspection system that performs X-ray contaminant detection and product inspection for bags, boxes, and flat packages. Belt speed up to 40 m/min (131 ft/min), detector resolution 0.8 mm standard (0.4 mm optional), 15-inch touchscreen, IP54 protection rating (IP65 optional or IP69K upgrade).
Key Features
- Top down X-ray system detects contaminants and inspects products for bags, boxes, and flat packages
- Meets HACCP and retailer food safety and quality requirements
- Can be configured for any application or factory environment
- Software helps eliminate false rejects
- Can be optionally upgraded to meet IP69K washdown specifications
- Specially designed to detect metal, glass, dense plastic, and other foreign objects in large food packages such as cases, bags, and trays
- Safety features: radiation scatter curtains, LED light towers, multiple emergency stop buttons, X-ray key switch, inspection area door locks, and safety interlocks on all doors
- Performs product verification inspection to estimate weight and fill level or determine whether a packaged item is missing an object
- Flexible software design allows up to eight lanes running simultaneously through the aperture
- Designed to run continuously in harsh environments
- Integrated remote monitoring helps identify issues quickly
Suitable Applications
- Packaged food
- Bottles, cans
- Bags, boxes, flat packages
- Food production lines
- HACCP compliance inspection
Contact 0796 700 777 for a quote.
| Product Type | C400 X-Ray Inspection System |
|---|---|
| Catalog Number | XPERTC400 |
| Belt Material | FDA Approved Urethane |
| Belt Speed | Up to 40 m/min. (131 ft/min) |
| Compressed Air | 80 psi to 100 psi (5.5 bar to 6.9 bar) |
| Conveyor Heights Available | 800 to 1000 mm (31.5 to 39.4 in.) Frames available for nominal line heights of 1200 and 1400 mm (47.2 to 55.1 in.) |
| Detector Resolution | 0.8 mm standard, 0.4 mm optional |
| Human Machine Interface | 15-inch diagonal touchscreen with protective cover |
| Inspection Algorithms Available | Weight, Count, Grid and Customizations |
| Interface | USB (watertight), Ethernet, six digital inputs and four digital outputs |
| Interface Languages | English, Spanish, Italian, French, German, Chinese; Others available on request |
| Intrusion Protection Rating | IP54, optional IP65 with washdown airconditioner option, or upgrade to IP69K |
| Machine Cooling | Built-in cabinet airconditioner |
| Multilane Operation | Up to 8 lanes |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Product Weight | Up to 45kg (99 lbs) |
| Radiation Safety Conformance | FDA CFR 21 part 1020.40, UK IRR 1999, RED act (contact factory for other regional certifications) |
| Relative Humidity | 20% to 90% non-condensing |
| Safety Features | X-ray power key, emergency stops, radiation curtains, LED X-ray imminent/on lights, all doors equipped with magnetic interlocks |
| System/Conveyor Lengths Available | 1.5 m (58.6 in). Many options for longer infeed and outfeed conveyors |
| Voltage | 190 to 240 VAC, 50/60 Hz, 20-amp service |
| X-Ray Curtain Material | Proprietary No-lead Material |
| X-Ray Power | Standard: 100 W (70 kV/1.4 ma) Optional: 200 W (75kV/2ma) and 500 W (80kV/4ma) |
| Detection Algorithms Available | Binary, Contrast, Gradient, Groups, Morphology |
| Detector Scan Rate | Up to 2800 Lines/sec. |
| IP Rating | IP54, optional or IP65 with washdown airconditioner option |
