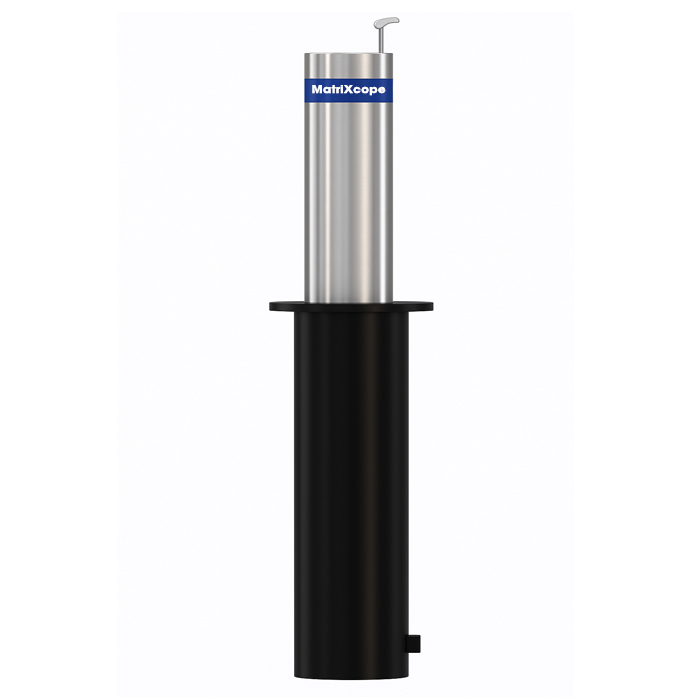

The MatriXcope MTC-B2006PLUS semi-automatic bollard is manufactured from premium 304 stainless steel, ensuring high durability and corrosion resistance. The device has a barrier height of 600mm and a barrier diameter of 219mm with a wall thickness of 6mm. The embedded sleeve design (D273×T2mm, depth 800mm) allows for stable installation, the stainless steel surface is treated with a satin finish and the carbon steel parts are coated with black powder coating, ensuring durability in harsh environments.
Key Features
- Convenient operation: easy to use, users can control the upward movement of the bollard via the control panel or remote control.
- Space saving: occupies little space, no additional parking space required, improving parking space utilization efficiency.
- Customization options: available in various sizes, materials, and finishes to suit specific requirements.
- Material: 304 stainless steel.
- Barrier height: 600mm.
- Barrier diameter: 219mm.
- Wall thickness: 6mm.
- Flange size: D350*T8mm.
- Embedded sleeve size: D273*T2mm.
- Embedded sleeve depth: 800 mm.
- Stainless steel surface treatment: satin finish.
- Carbon steel surface treatment: black powder coating.
- Weight: 58kg.
- Mechanism: gas spring.
- Operating temperature: –45℃ to 75℃.
- Control method: key.
Suitable Applications
- Access control for restricted areas
- Gatehouse stations
- Parking lots
- Security areas
Contact 0796 700 777 for a quote.
| Vật liệu | 304 stainless steel |
|---|---|
| Chiều cao chắn | 600mm |
| Đường kính chắn | 219mm |
| Độ dày thành | 6mm |
| Kích thước mặt bích | D350*T8mm |
| Kích thước ống lồng nhúng | D273*T2mm |
| Độ sâu ống lồng nhúng | 800 mm |
| Xử lý bề mặt thép không gỉ | Satin Finish |
| Xử lý bề mặt thép carbon | Black Powder Coating |
| Khối lượng | 58kg |
| Cơ cấu | Gas spring |
| Nhiệt độ hoạt động | – 45℃ to 75℃ |
| Phương thức điều khiển | Key |
