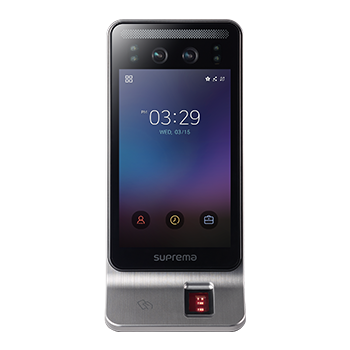

BioStation 3 là thiết bị kiểm soát ra vào khuôn mặt AI thế hệ mới của Suprema, cung cấp trải nghiệm ra vào không tiếp xúc. Thiết bị hỗ trợ đa dạng phương thức xác thực: khuôn mặt, thẻ RFID, QR/Barcode, Mobile Access. Tốc độ quét khuôn mặt trong 0.2 giây, có khả năng chống giả mạo khuôn mặt. Đạt chuẩn IP65, IK06, phù hợp cả trong nhà và ngoài trời. Dung lượng lưu trữ lên đến 100.000 người dùng, 50.000 khuôn mặt. Kết nối Ethernet 1Gbps, Wi-Fi (tùy chọn), PoE+, RS485, Wiegand, USB 2.0. Tích hợp VoIP Intercom, RTSP video monitoring. Đạt chứng nhận ISO/IEC 27001, 27701, GDPR.
| Model | BS3-DB / BS3-APWB |
|---|---|
| Credential | Face, 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa (BS3-DB) / Face, 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa, iCLASS SE/SR/Seos (BS3-APWB) |
| RF read range | EM/MIFARE/DESFire: 30 mm, FeliCa: 15 mm (BS3-DB) / EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15 mm (BS3-APWB) |
| Mobile Card | NFC, BLE (hỗ trợ) |
| QR/Barcode | Hỗ trợ |
| Scrambled Keypad (PIN) | Hỗ trợ |
| IP rating | IP65 |
| IK rating | IK06 |
| Face Authentication Distance | 0.3 ~ 1.0 m (mặc định), khuyến nghị 0.6 ~ 1.0 m |
| Authentication Height | 1.4 ~ 1.9 m |
| Matching speed | Within 0.2 seconds |
| Live Face Detection | Supported |
| Max. User | 100,000 |
| Max. Credential (1:N) - Face | 50,000 |
| Max. Credential (1:1) - Face | 100,000 / Card: 100,000 / PIN: 100,000 |
| Max. Text Log | 5,000,000 |
| Max. Image Log | 50,000 |
| CPU | 1.5GHz Quad Core |
| Memory | 32GB Flash + 4GB RAM |
| Crypto Chip | Supported |
| Display | 5.5" IPS color LCD, 720 x 1280 pixels |
| Camera | IR: 2M pixels, Visual: 2M pixels |
| Sound | 16bit |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 0% ~ 80%, non-condensing |
| Storage Humidity | 0 % ~ 90 %, non-condensing |
| Weight (Device) | 370g (BS3-DB) / 380g (BS3-APWB) |

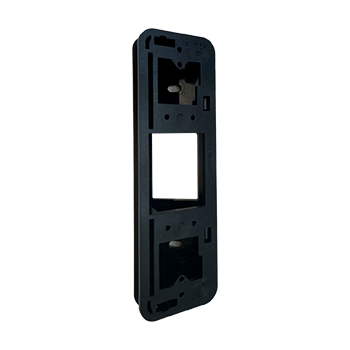

| Weight (Bracket) | 90g (Including washer and bolt) |
| Dimension (WxHxD, mm) | 82.5 x 171 x 23.4 |
| Certifications | CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC (BS3-DB) / CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC, ETL Listed to UL 294 (BS3-APWB) |
| Ethernet | 10/100/1000 Mbps, auto MDI/MDI-X |
| Wi-Fi | Not supported (BS3-DB) / 802.11 b/g/n 2.4GHz (BS3-APWB) |
| Network Protocol | TCP, UDP |
| RS-485 | 1 ch Master / Slave (Selectable) |
| RS-485 Communication Protocol | OSDP V2 Compliant |
| Wiegand | 1 ch Input, 1 ch Output |
| Input | 3 ch Inputs |
| Relay | 1 Relay |
| USB | USB 2.0 (Host) |
| USB expansion port | Supported |
| PoE+ | Not supported (BS3-DB) / Supported (IEEE 802.3 at compliant) (BS3-APWB) |
| Intercom | Supported |
| RTSP | Supported |
| Tamper | Supported |
| Voltage | 12 Vdc, Current: Max. 1 A / 24 Vdc, Current: Max. 0.7 A |
