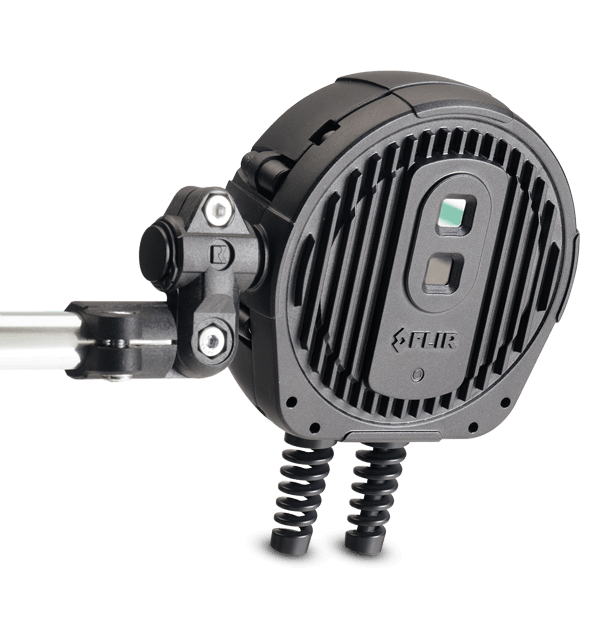

FLIR TrafiOne là cảm biến all-in-one cho giám sát giao thông và điều khiển tín hiệu giao thông động. Thiết bị sử dụng thermal imaging và công nghệ Wi-Fi để điều chỉnh đèn tín hiệu dựa trên phát hiện sự hiện diện của xe, xe đạp và người đi bộ, kể cả trong bóng tối hoàn toàn hoặc thời tiết xấu. Cảm biến thermal 160 x 120, camera visual 1080 x 1920 HD color CMOS, cấp bảo vệ IP67, nguồn vào 12 - 42 V AC/DC.
Tính năng nổi bật
- Cảm biến thermal imaging phát hiện sự hiện diện của xe, người đi xe đạp và người đi bộ trong thời tiết xấu và điều kiện ánh sáng yếu
- Công nghệ Wi-Fi: kết nối Wi-Fi bảo mật cho phép cấu hình vùng phát hiện nhanh chóng và dễ dàng
- FLIR ITS-IQ: thông tin TrafiOne có thể truy cập qua giải pháp phân tích dữ liệu trên cloud FLIR ITS-IQ
- 8 vùng phát hiện hiện diện xe và 8 vùng phát hiện hiện diện người đi bộ
- HD imager cho hỗ trợ hình ảnh bổ sung
- Detector Type: Focal Plane Array (FPA) uncooled VOx microbolometer LWIR sensor, bước sóng 8 đến 14 µm
- Nguồn vào 12 - 42 V AC/DC, tiêu thụ 6 W, hỗ trợ PoE A và PoE B
Phù hợp sử dụng
- Giám sát giao thông đô thị
- Điều khiển tín hiệu giao thông động
- Phát hiện người đi bộ và xe đạp tại giao lộ
- Đo thời gian di chuyển theo phương thức vận tải
- Smart City
Liên hệ 0796 700 777 để được báo giá.
| Detection Zones | NEMA TS2 specs |
|---|---|
| Functionality | Curbside and on-crossing pedestrian and bicycle presence detection; Stopbar and advance vehicle and bicycle presence detection (optional license); Wi-Fi monitoring (optional license); Visual HD streaming video (optional license) |
| Number of Detection Zones | 8 detection zones |
| Compression - Thermal | MJPEG, MPEG-4, H.264 |
| Compression - Visible | MJPEG, MPEG-4, H.264 |
| Configuration | Web page via secure Wi-Fi or Ethernet |
| Ethernet | 10/100 MBps |
| Frame Rate - Thermal | 9 FPS |
| Output | N/O and 1 N/C dry contacts direct, 16 N/C dry contacts via TI BPL2 (EDGE & SIU) and TI BPL3 (EDGE & SIU) interface |
| WiFi | IEEE 802.11 |
| Detection Distance | FLIR TrafiOne 195: Stop-Bar Detection: 0–15 m (0–49.2 ft); recommended for 2 lanes only. Pedestrian & bicycle presence: 0–12 m (0–39 ft). FLIR TrafiOne 156: Stop-Bar Detection: 10–25 m (33–82 ft); recommended for 2 lanes only. Pedestrian & bicycle presence: 10–20 m (33–65.6 ft) |
| FCC | FCC part 15 class A |
| Input Power | 12 - 42 V AC/DC |
| Power Consumption | 6 W |
| Power over Ethernet (PoE) | PoE A and PoE B |
| Powerline Communication | Up to 4 MBps via TI BPL2 (EDGE & SIU) and TI BPL3 (EDGE & SIU) interface |
| EU Directives | EMC 2004/108/EC, RoHS 2011/65/EU |
| IP Rating | IP67 |
| Materials | All weatherproof UV-resistant |
| Temperature Range | -40° to 55°C (-40° to 131°F) |
| Detector Type | Focal Plane Array (FPA) uncooled VOx microbolometer LWIR sensor, 8 to 14 µm wavelength |
| Frame Rate - Visual | 30 FPS |
| HFOV - Thermal | 95° |
| HFOV - Visual | FLIR TrafiOne 195: 95°; FLIR TrafiOne 156: 56° |
| Resolution - Thermal | 160 x 120 |
| Resolution - Visual | 1080 x 1920 HD color CMOS |
| Streaming Video | RTSP |
| Bracket | PA GF30 mounting clamps and aluminum tube |
| Installation Height | FLIR TrafiOne 195: 3.5 - 6.0 m; FLIR TrafiOne 156: 5.5 - 8.0 m |
| Material | Aluminum housing with PC GF10 sunshield |
