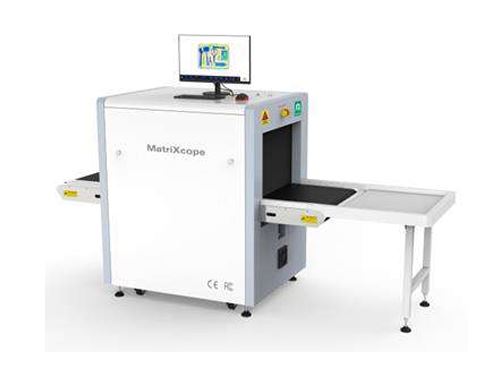

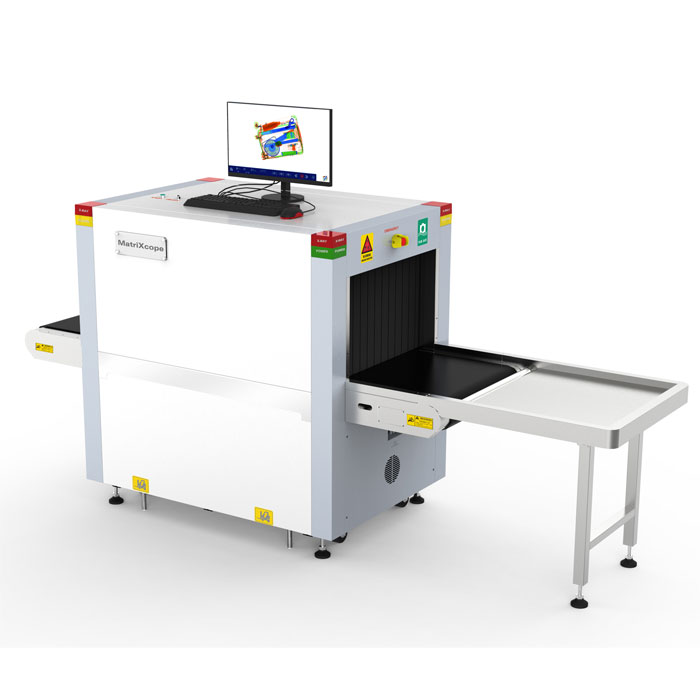

MatriXcope MTC-XR64 là máy soi X-ray hành lý dùng để phát hiện các vật phẩm nguy hiểm tiềm ẩn gồm chất dễ cháy, chất nổ, vũ khí và các vật phẩm bị cấm khác. Máy sử dụng công nghệ X-ray để tạo hình ảnh rõ nét các vật phẩm bên trong hành lý, hỗ trợ nhân viên an ninh phát hiện mối đe dọa tiềm ẩn. Thiết bị được sử dụng tại sân bay, ga tàu, tòa nhà chính phủ, đại sứ quán, trung tâm hội nghị, triển lãm.
Tính năng nổi bật
- Multilingual operation
- Automatic built in test and self diagnosis
- Secure access Key
- Threat alert and material classification
- Auto archiving
- Energy saving design
- One key turn off
- Drugs and explosives inspection
- Indication of the date and time
- Baggage counter
Hệ thống hình ảnh
- X-ray Sensor: L-Shaped Photodiode Array, 12bit deep
- Images process: 24bit real time processing, 4colors analysis, Images displayed marked date and ID No., Count the number of bags
- Image display: High resolution of 1920*1080 pixel; Image Grey Level: 65536
- Image Enhancement: 1-32 times enlargement continuity, Color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc.
- Explosives & Narcotics Detection: Suspicious organics highlight (atomic number Zeff=7,8,9)
- Suspecious Alarm: Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs
- Threat Image Projection (TIP): Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
- Image Recall: 30 images recallable
- Image Archive: Up to 10,000 images stored automatically, enable transferring to USB disk, and converting to JPG format
- Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system log, system standby and stimulant training, etc.
- Options: Dual-direction scanning, inteligent roller, etc.
Phù hợp sử dụng
- Sân bay
- Ga tàu
- Tòa nhà chính phủ
- Đại sứ quán
- Trung tâm hội nghị, triển lãm
Liên hệ 0796 700 777 để được báo giá.
| Tunnel size (mm) | 620(W)*415(H) |
|---|---|
| Conveyor Speed (m/s) | 0.4 |
| Conveyor height (mm) | 697 |
| Conveyor Max Load (kgs) | 150 |
| X ray dose per each inspection | ≤2μGy |
| X ray leakage | <1μGy/h at any point 5 centimeters outside the external surface |
| Penetration | 11 mm steel |
| Wire Resolution | dia 0.0787mm copper wire (AWG40) |
| Penetration Resolution | dia 0.202mm copper wire (AWG32) under three-step aluminum wedge |
| Spatial resolution | Horizontal: dia 1.0mm, Vertical: dia 1.0mm |
| Power Consumption | max. 800W |
| Noise | <60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Sensor | L-Shaped Photodiode Array, 12bit deep |
| Images process | 24bit real time processing, 4colors analysis, Images displayed marked date and ID No., Count the number of bags |
| Image display | High resolution of 1920*1080 pixel; Image Grey Level: 65536 |
| Image Enhancement | 1-32 times enlargement continuity, Color/BW, negative, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organics/inorganics, local enhancement, pseudo color processing, edge enhancement, etc. |
| Explosives & Narcotics Detection | Suspicious organics highlight (atomic number Zeff=7,8,9) |
| Suspecious Alarm | Alarm and box line the suspicious objects including hard to penetrate material, explosives and drugs |
| Threat Image Projection (TIP) | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Recall | 30 images recallable |
| Image Archive | Up to 10,000 images stored automatically, enable transferring to USB disk, and converting to JPG format |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system log, system standby and stimulant training, etc. |
| Options | Dual-direction scanning, inteligent roller, etc. |
| Operation temperature/Humidity | 5℃-40℃ / 0%-90% (non-condensing) |
| Storage Temperature/Humidity | -20℃ to 60℃ / 10%-90% (non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Options: 110-120V, 230-240V, 60Hz) |
| Stabilizer and UPS | Optional |
| Monitor | One 21.5-inch LCD monitor, 1920*1080, no console desk |
| RAM | 1GB |
| Hard Disk | 1T |
| Keyboard | Special designed |
| System | Embedded Linux operating system, multi core ARM, stable and reliable |
| Electric roller | Single-phase |
| Compliance | ISO19001 ; ISO14001 ; ISO27001 ; OHSMS18001 ; CE, ROHS, FCC, REACH ; USA, FDA |
