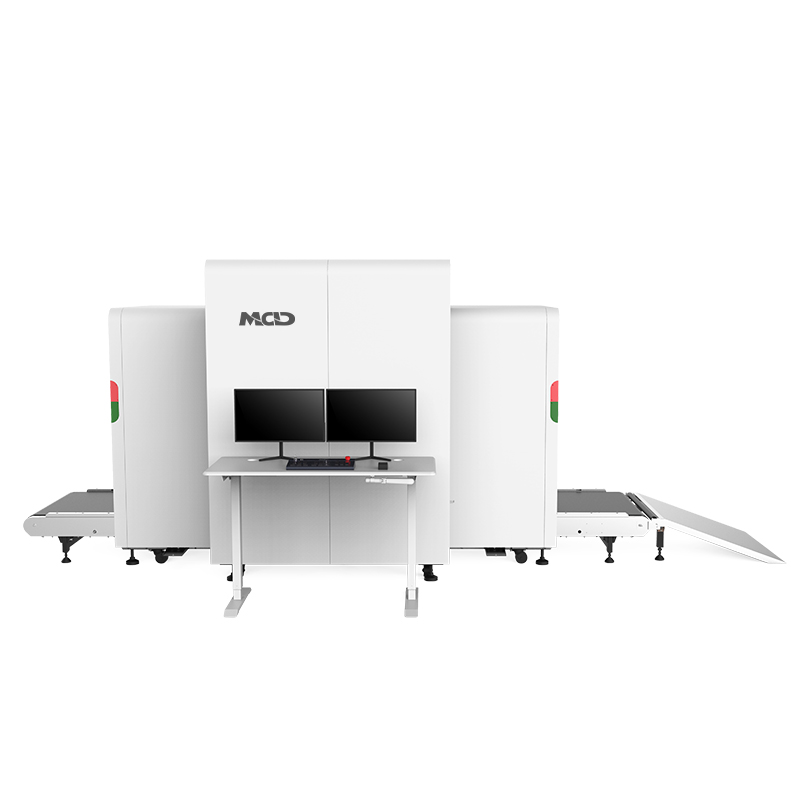

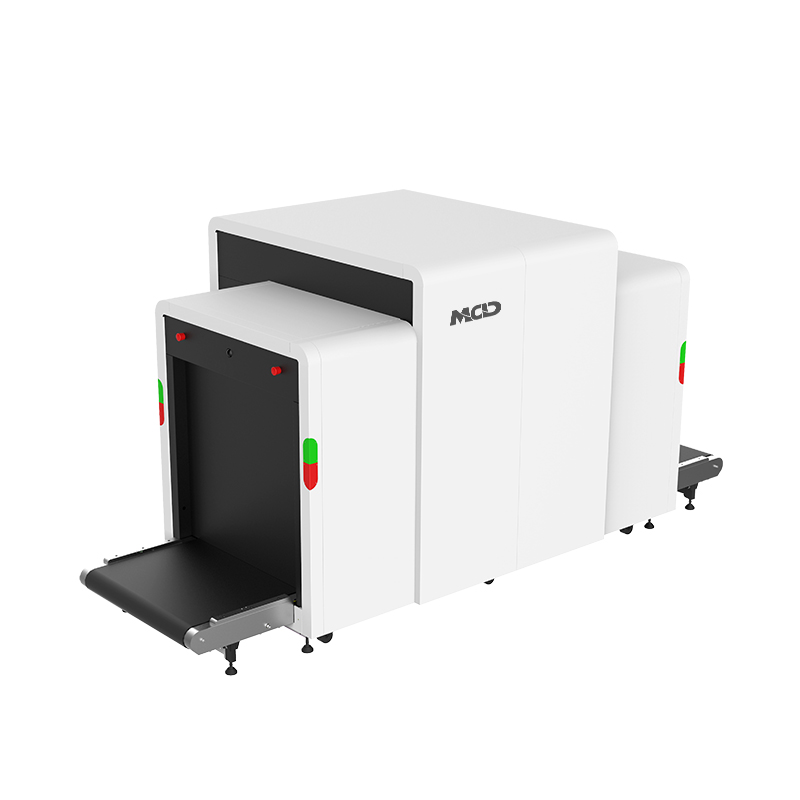

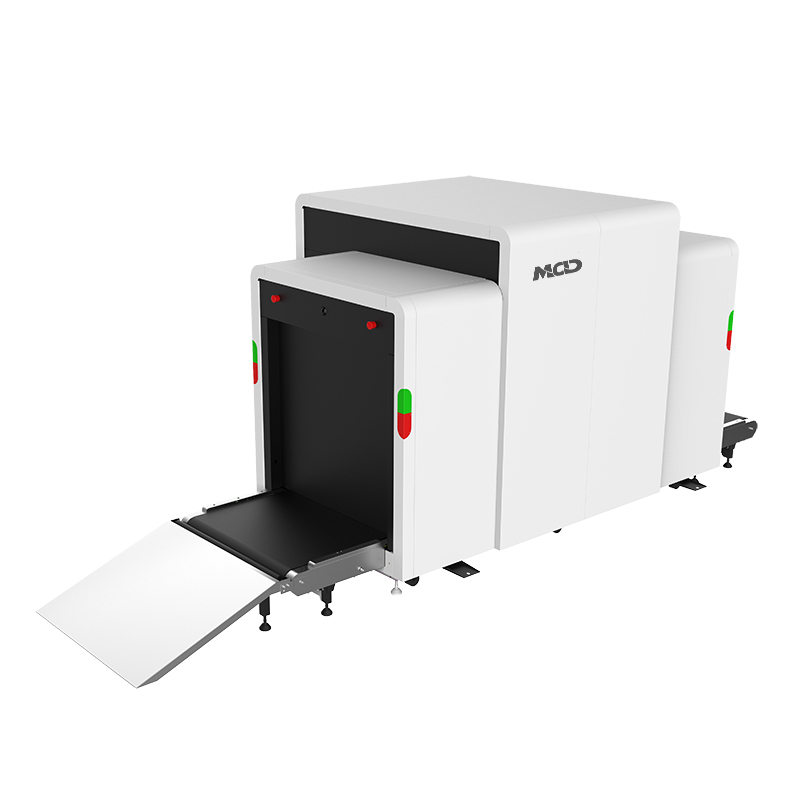

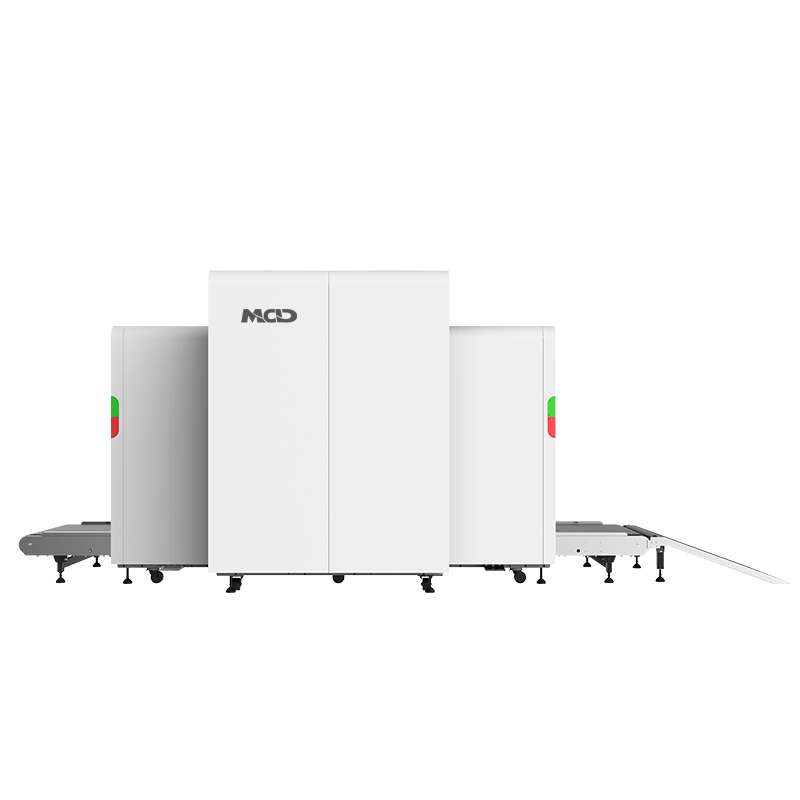

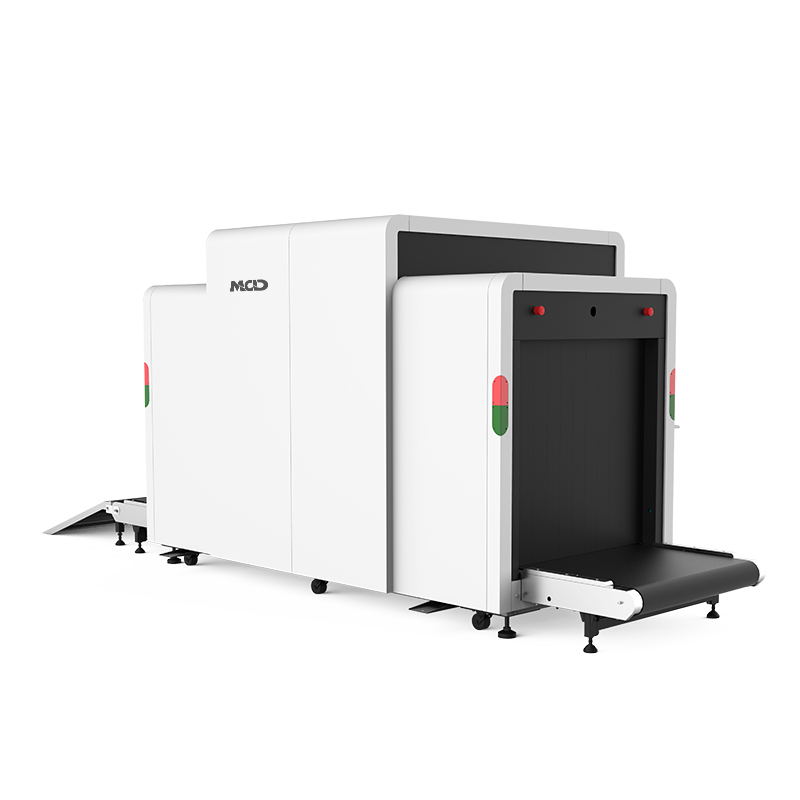

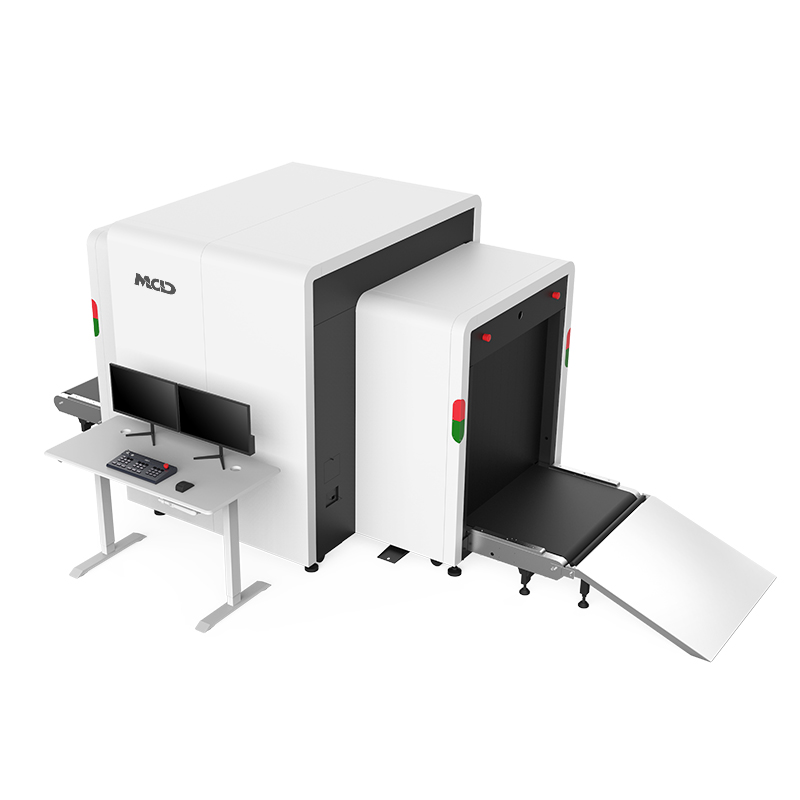

MCD-100100D là máy quét hành lý X-quang Dual-View của hãng MCD. Thiết bị dùng CPU Intel quad-core processor, RAM 16 G, operating system Embedded Linux OS, user interface Local GUI (full functions) và Web interface. Tunnel size 1000 mm × 1000 mm (39.37" × 39.37"), X-ray generator Dual-View, X-ray tube anode voltage 160 kV, conveyor speed 0.2 m/s, maximum belt load 200kg (440.92 lb).
Tính năng nổi bật
- Wire resolution — Horizontal view: Typical 36AWG(0.127mm); standard 34AWG(0.16mm). Vertical view: Typical 38AWG(0.102mm); standard 38AWG(0.102mm)
- Penetration (steel) — Horizontal view: Typical 38 mm; standard 36 mm. Vertical view: Typical 40 mm; standard 38 mm
- Leakage dose-rate ≤ 0.9 μSv/h (μGy/h); noise level ≤ 63 dB; current leakage ≤ 0.25 mA; film safety ISO 1600 (33 DIN)
- Intelligent analysis: Preview, Item Recognition, Recognition Types (23 loại vật thể), Danger Levels, Event Linkage, Image Storage, Baggage Search, Report Search, Backup
- Image Processing: color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, organic stripping, metal stripping, mixture stripping, inverse, high-energy enhancement, low-energy enhancement, light, dark, density threat alert Z7/Z8/Z9, high density alert, AI overlay, vertical flip, pseudo color
- Image Zooming: zoom in X-ray images up to 64x; Image Playback: playback of 30 images
- Graphics Output: 2-channel DVI outputs, độ phân giải tối đa 1920 (H) × 1080 (V) @60 Hz; Monitor: 2 × 21.5"
- Video Input (Network): 12-channel input (max 4K); 8-channel IPC + 4 PoE (2 PoE by default)
- Built-in Disks: hỗ trợ tối đa 4 × 10 T SATA disks, cấu hình mặc định 1 × 4 T disk; Storage Management: Single; RAID 0/1/5; global hot standby
- Biometrics: User Fingerprint Login (Optional)
- Power Supply: 220VAC -15%~+10%, 50/60 Hz; 100–130 VAC, 50/60 Hz (optional). Typical Power Consumption 1 kW; Maximum Power Consumption 1.5 kW
- Operating Temperature 0 °C to +45 °C (32 °F to +113 °F); Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
- Dimensions 3,599 mm x 1,690 mm x 1,790 mm (141.70"×66.53"×70.47"); Net Weight 1200 kg (2645.55 lb); Gross Weight 1400 kg (3086.47 lb); Installation Mode: Ground mount
Phù hợp sử dụng
- Sân bay
- Ga tàu / đường sắt
- Kiểm tra hành lý
- Kiểm tra bưu kiện
- An ninh tòa nhà
Liên hệ 0796 700 777 để được báo giá.
| CPU | Intel quad-core processor |
|---|---|
| RAM | 16 G |
| Operating System | Embedded Linux OS |
| User Interface | Local GUI (full functions); Web interface |
| Tunnels Size | 1000 mm × 1000 mm (39.37" × 39.37") |
| X-ray Generator | Dual-View |
| X-ray Tube Anode Voltage | 160 kV |
| X-ray Tube Cooling | Sealed oil bath with forced air |
| Wire Resolution | Horizontal view: Typical 36AWG(0.127mm); standard 34AWG(0.16mm). Vertical view: Typical 38AWG(0.102mm); standard 38AWG(0.102mm) |
| Penetration (steel) | Horizontal view: Typical 38 mm; standard: 36 mm. Vertical view: Typical 40 mm; standard 38 mm |
| Leakage Dose-rate | ≤ 0.9 μSv/h (μGy/h) |
| Noise Level | ≤ 63 dB |
| Conveyor Speed | 0.2 m/s |
| Conveyor Height | 290 mm - 370 mm adjustable |
| Maximum Belt Load | 200kg (440.92 lb) |
| Current Leakage | ≤ 0.25 mA |
| Film Safety | ISO 1600 (33 DIN) |
| Preview | Real-time display of X-ray package image and camera image; real-time item intelligent analysis |
| Item Recognition | Recognizes items and displays AI overlay; the AI overlay box moves with packages |
| Recognition Types | Recognizes 23 types of objects: Guns, fireworks, spray cans, knives, axes, scissors, lighter fluid, nail polish, bottled liquids, glass bottles, thermos bottles, plastic bottles, handcuffs, nightsticks, brass knuckles, lighters, tools, electronic products, mobile phones, powerbanks, laptops, umbrellas and high density object |
| Danger Levels | High risk, warning, and safe (supports custom configuration according to types of objects) |
| Event Linkage | I/O alarm, voice prompt, platform alarm and screen notification can be triggered according to danger levels |
| Image Storage | Stores as much as 1 million images with information on their danger levels and the types of objects detected. Original and analyzed images can both be viewed. |
| Baggage Search | Search, play back, and export baggage images and linked videos according to time, objects type and more |
| Report Search | Generate and export reports according to time and object types |
| Backup | USB/Network |
| Self-inspection | Automatically detects system failures and prompts error codes |
| Image Processing | Enhancement functions include color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, organic stripping, metal stripping, mixture stripping, inverse, high-energy enhancement, low-energy enhancement, light, dark, density threat alert Z7/Z8/Z9, high density alert, AI overlay, vertical flip, pseudo color and more |
| Image Playback | Supports playback of 30 images |
| Image Zooming | Zoom in X-ray images up to 64x, image smooth zooming. Drag the focus position using a mouse or direction-keys |
| Device Diagnosis | Supports diagnosis of key components such as the detector, motor, IR sensor and special keyboard |
| Detection Configuration | Key function configuration; image display configuration (vertical flip and max zoom times), scan mode configuration (double direction, forward scan, reverse scan, compulsory scan and power saving mode), baggage counter configuration and person-package linkage configuration |
| Graphics Output | 2-channel DVI outputs; resolution: Up to 1920 (H) × 1080 (V) @60 Hz |
| Monitor | 2 × 21.5" monitor |
| Video Input (Network) | 12-channel input (max 4K); 8-channel IPC + 4 PoE (2 PoE by default) |
| Video Output (Network) | Real-time Baggage Monitoring, Input cameras |
| Recording Mode | Offers manual recording and recording plan. Recording plan features continuous recording, alarm event linked recording and no recording |
| Built-in Disks | Supports up to 4 × 10 T SATA disks and configures 1 × 4 T disk by default |
| Storage Management | Single; RAID 0/1/5 (Enterprise-level disks are recommended); global hot standby |
| Ethernet Ports | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet port; 4 RJ-45 PoE 10M/100M Ethernet ports |
| Internet Protocols | HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR and more) |
| Interoperability | ONVIF, SDK and more |
| Biometrics | User Fingerprint Login (Optional) |
| 232 Port | 1-channel RS 232 port for controlling the operating keyboard |
| Power Port | 2-channel port for monitor power supply |
| USB Port | 2-channel USB3.0, 2-channel USB2.0 |
| Display Port | 2-channel DVI outputs |
| Emergency Stop Button | 5 (4 buttons on the machine body and 1 button on the operating keyboard) |
| Power Button | 1 (on the operating keyboard) |
| Key Switch | 1 (on the operating keyboard) |
| Power Supply | 220VAC -15%~+10%, 50/60 Hz; 100–130 VAC, 50/60 Hz (optional) |
| Typical Power Consumption | 1 kW |
| Maximum Power Consumption | 1.5 kW |
| Intelligent Temperature Control | Detects the temperature of main board and HDD and automatically adjusts fan speed to make it work stably and quietly |
| Operating Temperature | 0 °C to +45 °C (32 °F to +113 °F) |
| Operating Humidity | 0%–95% (RH), non-condensing |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 0%–95% (RH), non-condensing |
| Dimensions | 3,599 mm x 1,690 mm x 1,790 mm (141.70"×66.53"×70.47") |
| Package Size | 2,540 mm × 2,068 mm × 2,058 mm (100"×81.42"×81.02") |
| Net Weight | 1200 kg (2645.55 lb) |
| Gross Weight | 1400 kg (3086.47 lb) |
| Installation Mode | Ground mount |
| Control Console Package Size & Weight | 1276 mm × 376 mm × 200 mm (50.24"×14.80"×7.87"), 38.5 kg (84.88 lb) |
