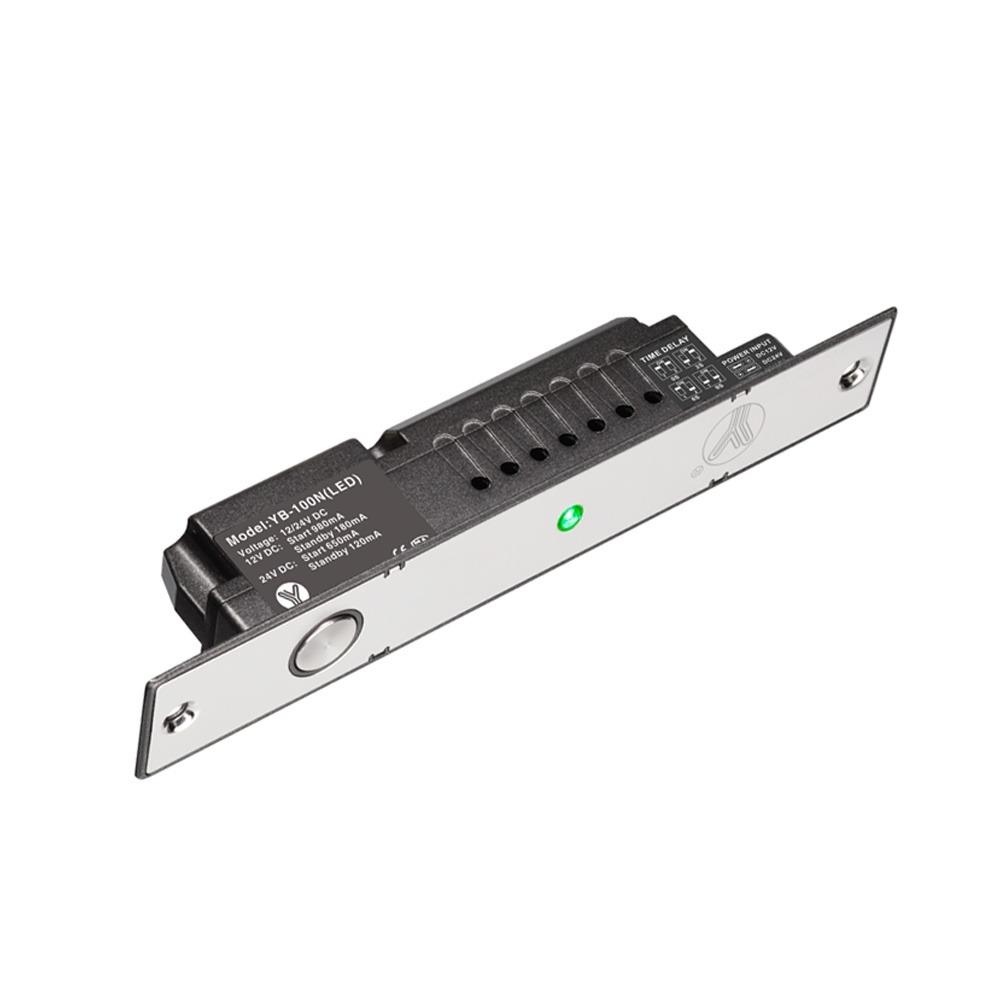

YB-100N(LED) 落插销锁是一款落插销式电磁锁，面板 205Lx35Wx36.5H(mm)，锁扣 90Lx25Wx2H(mm)，电压 12VDC/24VDC（Adjustable），Fail Safe 模式，感应距离 4-8mm，重量 0.55kg。
突出特点
- Feature: Fail Safe
- Face Plate: 205Lx35Wx36.5H(mm)
- Strike: 90Lx25Wx2H(mm)
- Voltage: 12VDC/24VDC (Adjustable)
- Current: Start 12V/980mA (+10%), Standby 12V/180mA; Start 24V/650mA (+10%), Standby 24V/120mA
- Signal Output: 5 Line — Door Status Signal NO, COM; 8 Line — Door Status Signal NO, COM; Lock Status Signal NO, NC, COM
- LED: Green for unlocking while red for locking
- Induction Distance: 4-8mm
- Suitable For: Wooden Door, Glass Door, Metal Door
- Weight: 0.55kg
适用场景
- 木门
- 玻璃门
- 金属门
- 门禁控制
请联系 0796 700 777 获取报价。
| Feature | Fail Safe |
|---|---|
| Face Plate | 205Lx35Wx36.5H(mm) |
| Strike | 90Lx25Wx2H(mm) |
| Voltage | 12VDC/24VDC(Adjustable) |
| Current | Start12V/ 980mA(+10%),Standby 12V/ 180mAStart)24V/ 650mA(+10%),Standby 24V/ 120mA |
| Signal Output | 5 Line: Door Status Signal:NO、COM8 Line:Door Status Signal:NO、COM ; Lock Status Signal:NO、NC、COM |
| LED | Green for unlocking while red for locking |
| Induction Distance | 4-8mm |
| Suitable For | Wooden Door,Glass Door,Metal Door |
| Weight | 0.55kg |
