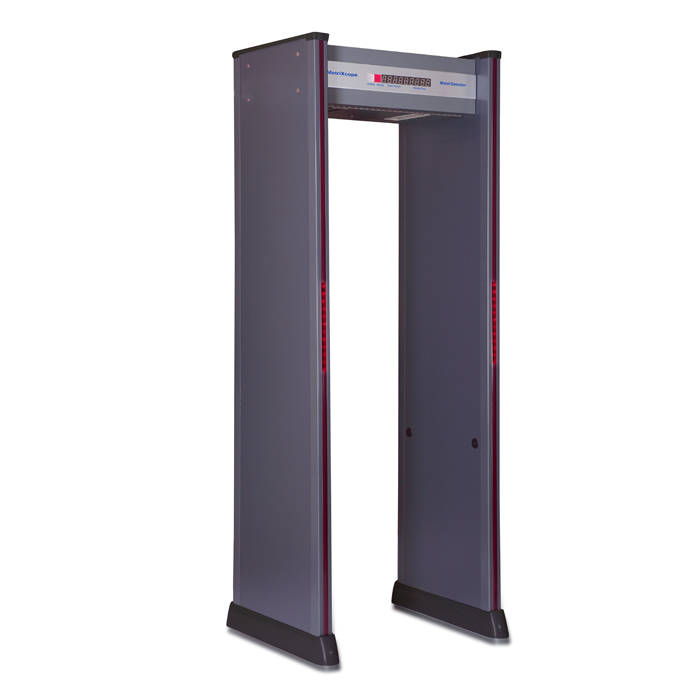

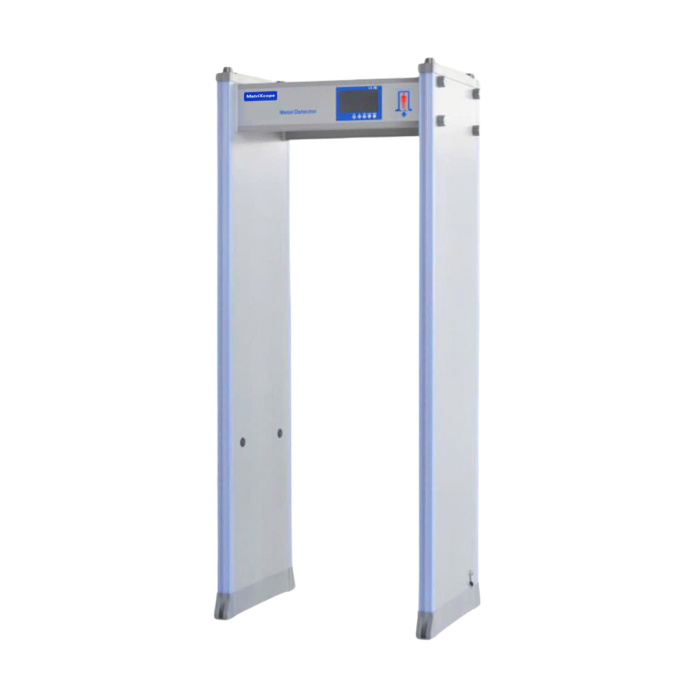

MatriXcope MTC-MD45 通过式金属探测门是一款户外安防设备,可检测金属物体、武器、爆炸物、毒品、现金和黄金。设备采用数字脉冲技术(digital pulse technology),最多 33/45 个定位区,7 英寸 LCD 显示屏,IP66 防护等级,检测速度最高 100 人/分钟。

突出特点
- 开机自检(POST)及逐组件诊断
- 模块化设计,便于快速运输和维护
- 性能稳定,可选 33/45 个定位区
- 灵敏度可分区调节
- 可检测飞行物体
- 安全的低压 DC 电源
- 自动进入省电模式并自动唤醒
- DSP — 高集成数字处理技术,性能稳定,避免误报
- 一键恢复初始参数
- 密码及硬件锁访问保护
- IP66 防护等级
- 内置备用电池和充电器
- 两条 LED 灯带显示人体上的威胁位置
- 高灵敏度检测磁性金属、非磁性金属及混合合金威胁物,可发现小型威胁
- 超低检测高度,可发现小型威胁

适用场景
- 机场
- 边境口岸
- 政府机构
- 大使馆
- 高安保环境

请联系 0796 700 777 获取报价。
| Công nghệ xung kỹ thuật số | Digital signal processing and filtering system with excellent ability to resist electromagnetic interference |
|---|---|
| Công nghệ từ trường cường độ thấp | Compliant with international safety standard, and harmless to pacemakers, pregnant women, floppy disks, films, videos, etc. |
| Điều khiển vận hành | Operates with a remote controller and 5 buttons at the screen for all functions Screen 7 inch LCD |

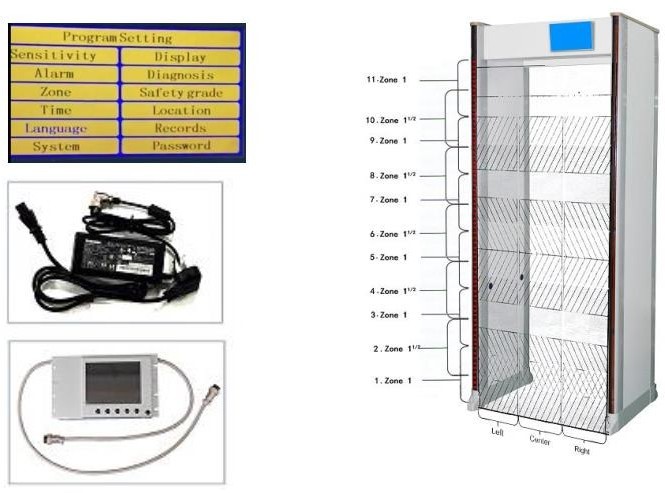

| Phát hiện | Maximum 33/45 localization zones to identify multiple target locations, 11 from head to toe, 3 from left to right |
| Chiều cao phát hiện tối thiểu | 10mm |
| Cảnh báo | – Sound and light, 2 LED light bars on both of the front door frame sides – 16 sounds and 20 volume levels for selection – Sound length 0-9 seconds for selection – LED alarm time 0-9 seconds for selection |
| Bộ đếm | Intelligent traffic and alarm counters that calculate traffic flow, in and out, and the alarm result. |
| Hiệu chuẩn | No need periodic calibration |
| Tốc độ phát hiện | Maximum 100 person/minute, adjustable |
| Giới hạn độ nhạy | Can detect a one-cent coin, or a clip |
| Cài đặt độ nhạy | 0-300 adjustable by each zone, according to the size and density of metal objects to be detected 30 application sites pre-set for selection |
| Tần số tín hiệu điều chỉnh | 100 working frequency/channel options |
| Khoảng cách tối thiểu giữa hai WTMD | 0.5m at high sensitivity |
| Chống can thiệp | Operation program is protected by password |
| Vật liệu cổng | Special material board, fire-proof, corrosion proof, moisture-proof, anticollision, and no deformation. |
| Chống thời tiết | IP66, supporting outdoor work |
| Bản ghi hành khách và cảnh báo | 100,000 records for passengers in and out and alarm |
| Tùy chọn | Battery or UPS, Integrated with camera, turnstile, network with PC by USB or WIFI, etc |
| Nguồn cấp | AC100V~240V 50/60Hz |
| Adapter nguồn | Output: 15Vdc, 5A Dimensions (L x W x H): 115x50x30 mm Cable length: 2.5m Weight: 0.3KG |
| Công suất tiêu thụ tối đa | 15W |
| Nhiệt độ/Độ ẩm hoạt động | -200C ~ 600C / 0% ~ 95% (non- condensing) |
| Trọng lượng máy (kgs) | 63 |

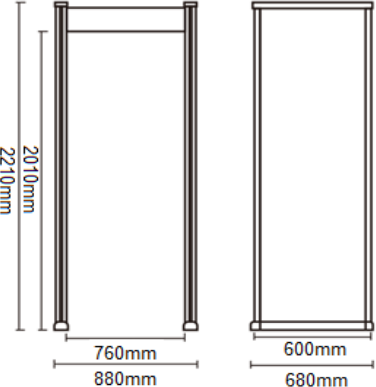

| Khung ngoài | 2210mm (h) * 880mm (w) * 680mm (d) |
| Khung trong | 2010mm (h) * 760mm (w) * 600mm (d) |
| Trọng lượng đóng thùng (kgs) | 68 |
| Kích thước đóng thùng | #1: 232*73*26cm |
| Tiêu chuẩn quốc tế | * ISO19001; ISO14001; ISO45001 * CE EMC, LVD, RoHS * FCC |
