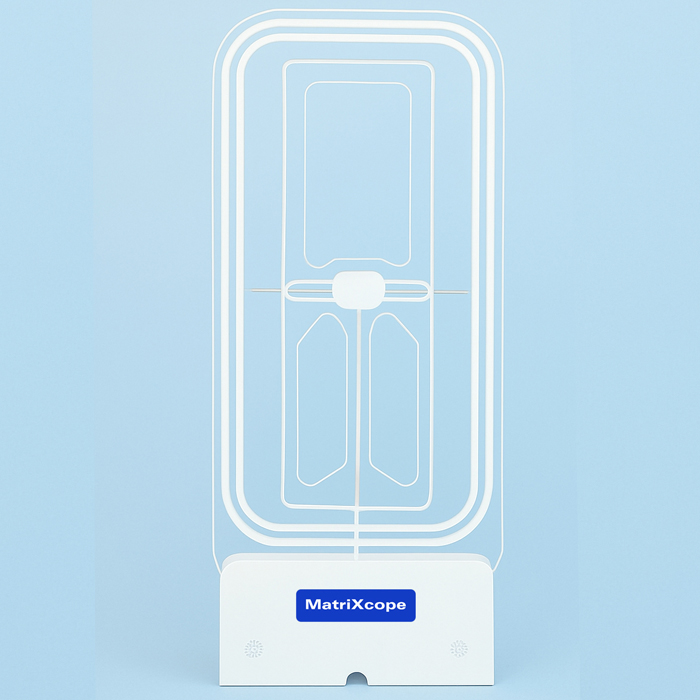

The MatriXcope MTC-RFID6001EM RFID-EM security gate is a system capable of simultaneously detecting hybrid tags (EM tags and high-frequency RFID tags). The antenna uses an imported hollow acrylic design, with good light transmission and high abrasion resistance, supporting multi-directional tag reading and ensuring a high system detection rate.
The control circuit uses the company's self-developed CPU controller, which can suppress signal interference faster, accurately extract the required alarm signal from the signal, and improve the device's anti-interference capability and alarm rate. The system integrates a people-flow counter and can link with cameras and turnstiles through connection ports.
Key Features
- Capable of simultaneous identification and alarming for EM magnetic tags and RFID chips.
- Alarm method: audible and visual alarm.
- Compatible with both domestic and international EM magnetic tags and high-frequency RFID chips.
- The system can be used with AFI alarm mode or EAS alarm mode.
- Enables contactless and rapid identification of RFID tags attached to circulating documents.
- Can perform RFID tag security scanning of circulating documents (such as printed publications, audiovisual publications, CDs, and DVDs) in libraries, without damaging the magnetic material attached to circulating documents and without being interfered with by magnetic tags in circulating documents.
- The device system has high detection performance, supports 3D monitoring, no false alarms and no missed alarms.
- Optional counter statistics function.
- Optional multi-channel alarm function.
- Optional linkage with access control system to control door opening/closing.
- Optional linkage with surveillance system to perform alarm snapshot function.
- Can perform people-flow statistics, alarm count, and upload & analysis of name data, along with remote device management and control functions via API.
Recommended Applications
- Smart libraries
- Archives
- Asset management
Contact 0796 700 777 for a quote.
| Tần số hoạt động | 13.56MHz±7KHz, 1.04KHz |
|---|---|
| Giao thức tuân thủ | ISO/IEC15693, ISO18000-3 |
| Khoảng cách đọc | Maximum 90cm (related to tag and antenna size) |
| Giao tiếp | RS232/Network |
| Số lượng hồng ngoại | 2 pairs |
| Trở kháng đầu ra | 50Ω, 8Ω |
| Vùng chồng tem | Max: 25% (for adjacent tags) ① |
| Số lượng cascade | Max: 5 sets (11 units) ② |
| Công suất định mức | <15W, 35W |
| Nhiệt độ hoạt động | -10℃～55℃ |
| Nhiệt độ lưu trữ | -20℃～70℃ |
| Độ ẩm | 20%～90% RH |
| Kích thước anten | Length * Width * Thickness (mm) 1690*720*25 |
| Trọng lượng | Type A: 38Kg, Type B: 39Kg |
| Màu | Transparent |
| Vật liệu vỏ | Acrylic |
