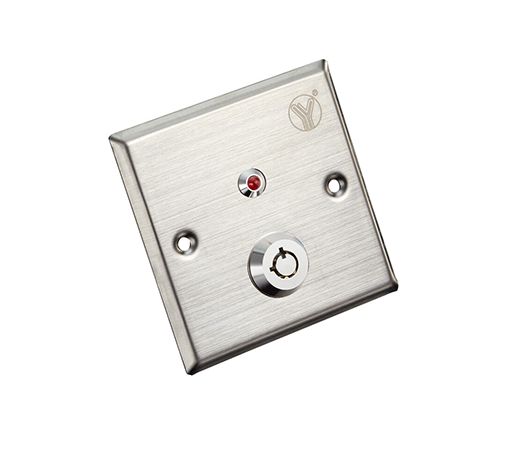

YLI YKS-850LS Keyed Door Exit Push Button Switch

YLI YKS-850LS Keyed Door Exit Push Button Switch

IN STOCK OFFICIAL WARRANTY 12-24 MONTHS
Category: Nút bấm mở cửa · SKU:
Request a quote
Giá tuỳ scope dự án — Liên hệ để được tư vấn và báo giá miễn phí trong 24h.
YLI YKS-850LS is a stainless steel keyed door exit push button switch (exit button), dimensions 86Lx86Wx20H (mm), current rating 3A@36VDC Max, LED/12VDC, output contact TAMP/NO/COM/NC/-LED+, mechanical life 500,000 tested, weight 0.18kg.
  • Công tắc phím bằng thép không gỉ với đèn LED
  • Kích thước 86Lx86Wx20H (mm)
  • Thường được sử dụng với các phím khẩn cấp (cùng phím)
  • Standard structure: Stainless steel panel, metal Button
  • Current rating: 3A@36VDC Max
  • LED/12VDC
  • Output contact: TAMP / NO / COM / NC / -LED+
  • Mechanical life: 500,000 tested
  • Suitable for door: Hollow Door
  • Safe Type: weatherproof, Defend and Duplicate the Key
  • Operating temp: 10～+55 (14-131F)
  • Operating humidity: 0-95% (non-condensing)
  • Panel Material: Stainless steel panel, wire drawing finished
  • Weight: 0.18kg
Nationwide delivery HCMC 24h · Provinces 3-5 days
24/7 technical support Hotline + Zalo + Email
100% genuine Authorized dealer
5 offices HCM · HN · ĐN · NT · CT
Request a quote Free consultation · Reply within 30 minutes
Hotline 24/7 0796 700 777
Email [email protected]

YLI YKS-850LS is a stainless steel key switch with LED, dimensions 86Lx86Wx20H (mm), commonly used with emergency keys (same key).

YLI YKS-850LS Keyed Door Exit Push Button Switch - image 1

Key Features

  • Standard structure: Stainless steel panel, metal Button
  • Current rating: 3A@36VDC Max
  • LED/12VDC
  • Output contact: TAMP / NO / COM / NC / -LED+
  • Mechanical life: 500,000 tested
  • Suitable for door: Hollow Door
  • Safe Type: weatherproof, Defend and Duplicate the Key
  • Operating temp: 10～+55 (14-131F)
  • Operating humidity: 0-95% (non-condensing)
  • Panel Material: Stainless steel panel, wire drawing finished
YLI YKS-850LS Keyed Door Exit Push Button Switch - image 2

Recommended Applications

  • Access control
  • Keyed exit button
  • Hollow Door
  • Access control accessories
YLI YKS-850LS Keyed Door Exit Push Button Switch - image 3
YLI YKS-850LS Keyed Door Exit Push Button Switch - image 4

Contact 0796 700 777 for a quote.

Dimensions 86Lx86Wx20H(mm)
Standard structure Stainless steel panel, metal Button
Current rating 3A@36VDC Max
LED 12VDC
Output contact TAMP / NO / COM / NC / -LED+
Mechanical life 500,000 tested
Suitable for door Hollow Door
Safe Type weatherproof, Defend and Duplicate the Key
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (non-condensing)
Panel Material Stainless steel panel, wire drawing finished
Weight 0.18kg
